Description

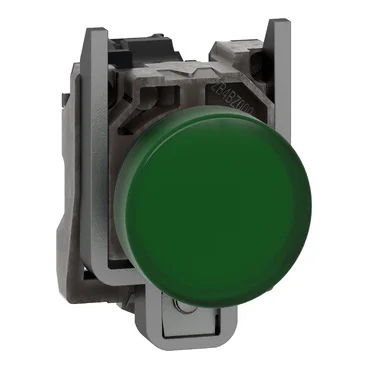

The Harmony XB4BVB3 pilot light is a high-quality signalling unit designed for reliable status indication in industrial control applications. Featuring a chromium-plated metal bezel and green plain lens, it is fitted with an integral universal LED powered by 24 V AC/DC, ensuring bright, long-lasting illumination without maintenance.
Engineered for quick installation, it fits standard Ø22.5 mm panel cut-outs and uses screw-clamp terminals for secure wiring. With a rugged build, it resists impacts, dust, water, and vibration, meeting IP66, IP67, IP69, and IP69K ratings, making it suitable for harsh operating environments.
Its modular design allows for easy integration into the Harmony XB4 range, providing a durable and visually clear status indicator for machinery and process control panels.
Specifications
| Attribute | Value |
|---|---|
| Part Number | XB4BVB3 |
| Range | Harmony XB4 |
| Product or Component Type | Pilot light |
| Device Short Name | XB4 |
| Bezel Material | Chromium-plated metal |
| Fixing Collar Material | Zamak |
| Mounting Diameter | 22.5 mm |
| Head Type | Standard |
| Shape of Head | Round |
| Lens Type | Plain |
| Lens Colour | Green |
| Light Source | Universal LED (integral) |
| Light Source Colour | Green |
| Rated Supply Voltage | 24 V AC/DC |
| Connection Type | Screw clamp terminals |
| Terminals Description | (X1-X2)PL |
| Ingress Protection Rating | IP66, IP67, IP69, IP69K |
| Special Features | High visibility, maintenance-free LED, vibration and impact resistant |
| Height | 47 mm |
| Width | 30 mm |
| Depth | 54 mm |
| Net Weight | 0.08 kg |
| Sale per Indivisible Quantity | 1 |
