Description

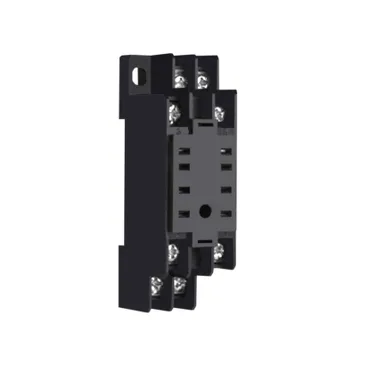

The Harmony RXZ Relay Socket is a compact, screw-clamp terminal socket developed for use with RXM plug-in relays, including the RXM2LB model with 2 C/O (changeover) contacts. It operates at a rated voltage of 250V AC and supports a conventional free air thermal current of 7A, making it suitable for general industrial control applications.
Designed for seamless DIN rail mounting, this socket provides a space-saving solution that simplifies installation in electrical enclosures. Its mixed contact terminal layout enhances flexibility in wiring, and the screw clamp terminals ensure secure and reliable electrical connections.
The Harmony RXZ socket supports easy plug-in and removal of relays, facilitating quick maintenance and minimizing system downtime. It is ideal for use in hard-wired logic circuits and complements programmable logic controllers (PLCs) in automated industrial systems.
This socket helps reduce enclosure size while increasing machine reliability. Its versatile design allows it to be mounted nearly anywhere, providing flexibility in control system architecture.
Specifications
| Specification | Details |
|---|---|
| Product Name | Harmony RXZ Relay Socket |
| Range | Harmony Electromechanical Relays |
| Product Type | Socket |
| Device Short Name | RXZ |
| Compatible Relays | RXM Plug-in Relay (2 C/O contacts, e.g., RXM2LB) |
| Rated Voltage | 250 V AC |
| Conventional Free Air Thermal Current (Ith) | 7 A |
| Contact Type and Composition | 2 C/O (2 Changeover Contacts) |
| Mounting Type | DIN Rail |
| Terminal Type | Screw Clamp Terminals (Mixed Contact Layout) |
| Application | Relay mounting, hard-wired logic systems, PLC interfaces |
| Installation Features | Space-saving design, easy relay connection and replacement |
| System Benefits | Reduces panel size, improves reliability, flexible mounting options |
| Width | 22.5 mm |
| Net Weight | 34 g |
