Description

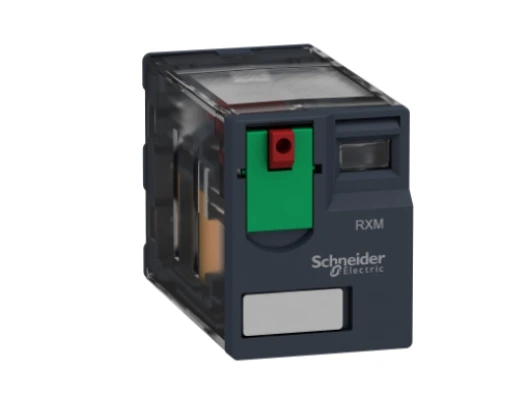

The Harmony RXM2AB1P7 from Schneider Electric is a compact, high-reliability miniature plug-in relay designed for control, signaling, and automation applications. It features 2 changeover (DPDT) contacts rated at 12A, and operates on a 230 V AC 50/60 Hz control voltage.
This relay includes a lockable red test button for quick diagnostics and a mechanical indicator flag that shows the real-time contact status. The test button can be operated momentarily or locked in place by flipping the green latch—offering an efficient way to perform functional tests or maintenance.
Engineered for plug-in mounting on RXZE sockets (available with screw clamp, screw terminals, or push-in connections), the RXM2AB1P7 is ideal for use in industrial machinery, packaging, textile, HVAC, control panels, PLC interfaces, motor controls, lighting systems, and more.
It holds the Green Premium label for environmental compliance and adheres to global standards including IEC, UL, CSA, CE, RoHS, REACH, and Lloyd’s Register, guaranteeing top-tier safety and performance.
Specifications
| Specification | Details |
|---|---|
| Brand | Schneider Electric |
| Series | Harmony RXM |
| Model Number | RXM2AB1P7 |
| Product Type | Miniature Plug-In Relay |
| Contact Configuration | 2 CO (DPDT) |
| Rated Current | 12 A |
| Control Voltage | 230 V AC, 50/60 Hz |
| Mounting Type | Plug-in (via RXZE socket) |
| Test Button | Lockable red pushbutton with green latch |
| Status Indicator | Mechanical flag (orange) |
| LED Indicator | No |
| Certifications | IEC, UL, CSA, CE, EAC, Lloyd’s, RoHS, REACH |
| Applications | Industrial Control Panels, PLC Interfaces, HVAC, Motor Control |
| Compatible Sockets | RXZE (screw clamp, screw connector, push-in terminal) |
| Accessories | Retaining clamps, protection modules, marking legends |
| Sold As | 10 pcs per pack (relay only) |
| Net Weight (per relay) | 0.037 kg |
