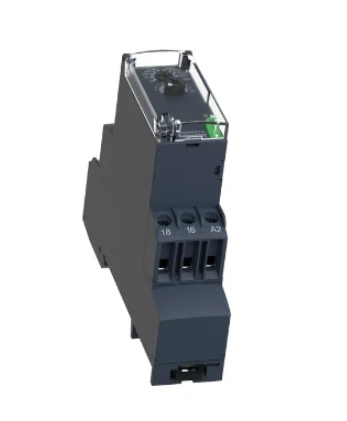

Harmony Dual Function Timer Relay – RE22R1AMR
Harmony RE22R1AMR dual-function timer relay with 1 C/O contact, 8A rating, wide timing range (0.05s–300h), and 24–240V AC/DC supply. Compact DIN rail mount for automation and control systems.
Original price was: $48.82.$46.57Current price is: $46.57.
(Save $2.25)
In stock
Description
The Schneider Electric Harmony RE22R1AMR is a dual-function modular timing relay designed to deliver reliable timing control across industrial and building automation applications. Supporting power-on delay (A) and power-on delay with control signal (Aw) functions, this relay allows for efficient integration into hard-wired logic systems—especially valuable in retrofitting and refurbishment projects without using PLCs.
With a timing range from 0.05 seconds to 300 hours, it is suited for versatile use cases such as automatic gates, alarms, lighting, ventilation, and other time-dependent operations. The relay features a single changeover contact (1 C/O) rated at 8A and accepts 24 to 240V AC/DC supply, making it compatible with most control systems.
Its slim 22.5 mm DIN-rail mountable design makes installation easy in compact control panels. Equipped with rotary trimmers for accurate timing setup, dual LEDs for real-time status indication, and a sealable front cover to prevent unauthorized changes, it is both user-friendly and secure.
Specifications
| Specification | Details |
|---|---|
| Brand | Schneider Electric |
| Series | Harmony RE22 |
| Model Number | RE22R1AMR |
| Relay Type | Dual Function Timing Relay |
| Functions | A (Power-on delay), Aw (Power-on delay with control) |
| Contact Configuration | 1 C/O (SPDT) |
| Rated Output Current | 8 A |
| Timing Range | 0.05 seconds to 300 hours |
| Control Voltage Range | 24 to 240 V AC/DC |
| Mounting Type | DIN rail (22.5 mm width) |
| Connection Type | Screw terminals |
| Adjustment Method | Rotary trimmers |
| Status Indication | 2 LEDs |
| Front Cover | Transparent and sealable |
| Use Cases | Automation, alarms, lighting, access control systems |
| Form Factor | Slim modular design |
| Net Weight | 0.1 kg |
Additional information
| Weight | 0.1 kg |
|---|
