Description

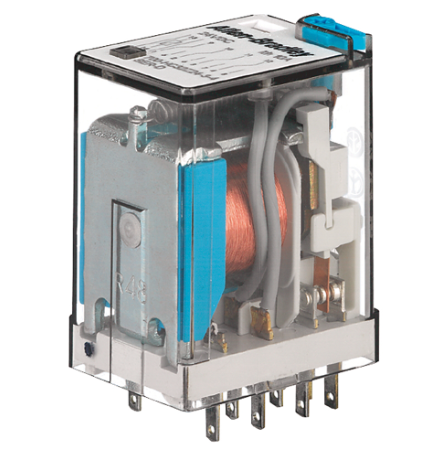

The 700-HC14A1-4 General Purpose Ice Cube Relay from Allen-Bradley is a compact, reliable electromechanical relay designed for a wide range of industrial control applications. Featuring a 4-pole double-throw (4PDT) contact configuration, this relay allows simultaneous switching of multiple circuits, making it suitable for control panels, machine automation, HVAC systems, and process equipment.
With a 24 VDC coil and plug-in mounting design, installation and replacement are quick and convenient, minimizing downtime during maintenance. The relay supports up to 7 A switching current and provides 2 kV isolation between coil and contacts for enhanced electrical safety and signal integrity.
Part of the trusted 700-HC series, this “ice cube” style relay is engineered for durability, consistent performance, and long service life in demanding industrial environments.
Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Allen-Bradley |
| Series | 700-HC |
| Part Number | 700-HC14A1-4 |
| Product Type | General Purpose Ice Cube Relay |
| Coil Voltage | 24 VDC |
| Frequency | 50/60 Hz |
| Contact Configuration | 4PDT (4-Pole Double Throw) |
| Number of Poles | 4 |
| Switching Current | 7 A |
| Mounting Type | Plug-In |
| Coil Resistance | 600 Ω |
| Coil Power | 50 mW |
| Isolation (Coil to Contact) | 2 kV |
