Description

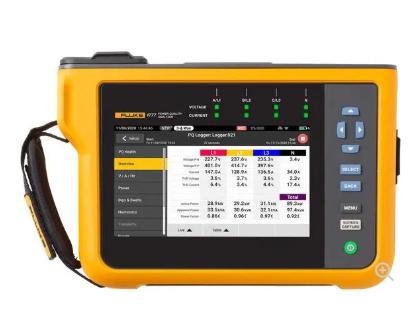

The Fluke 1777 Power Quality Analyser is an advanced solution for monitoring and analyzing electrical systems in industrial and commercial applications. Designed for 3-phase systems, it provides precise measurement of voltage, current, and power, enabling engineers and technicians to detect and troubleshoot power quality issues with confidence.
With a high current measurement capacity of up to 6000 A and voltage measurement up to 1000 V DC, the Fluke 1777 is suitable for a wide range of high-power applications. Its exceptional voltage accuracy (±0.1%) ensures reliable data for critical diagnostics and decision-making.
The device features a user-friendly LCD display and supports multiple connectivity options, including USB, wireless, and Bluetooth, allowing seamless data transfer and remote monitoring. Powered by a lithium-ion battery, it is designed for portability and ease of use in field conditions.
Built to withstand demanding environments, the analyser operates efficiently across a wide temperature range, making it a dependable tool for power quality assessment, preventive maintenance, and system optimization.
Specifications
| Parameter | Value |
|---|---|
| Product Name | Power Quality Analyser |
| Model Number | 1777 |
| Manufacturer | Fluke |
| Part Number | FLUKE-1777 |
| Number of Phases | 3-Phase |
| Maximum Current Measurement | 6000 A |
| Maximum Voltage Measurement | 1000 V DC |
| Maximum Power Measurement | 1500 mW |
| Voltage Accuracy | ±0.1% |
| Measurement Type | Voltage, Current, Power |
| Display Type | LCD |
| Interface Type | USB, Wireless, Bluetooth |
| Minimum Operating Temperature | -10°C |
| Maximum Operating Temperature | 50°C |
| Frequency Range | 50 – 60 Hz |
| Power Source | Battery |
| Battery Type | Lithium-ion |
| Battery Life | 1.5 hours |
| Length | 280 mm |
| Height | 62 mm |
| Weight | 2.1 kg |
