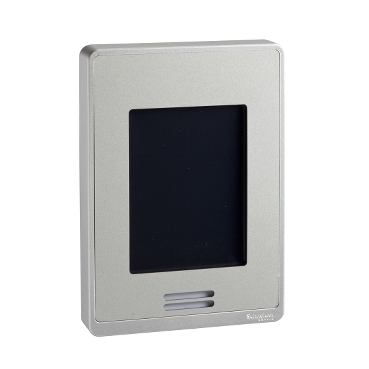

Fan Coil Room Controller – SE8350U5B00
The SE8350U5B00 is a low-voltage fan coil and zone controller from the SE8000 Series. With BACnet MS/TP communication, humidity and PIR sensing, and a silver case with fascia, it offers a balance of precision, energy efficiency, and modern design for HVAC control.
Original price was: $442.20.$436.98Current price is: $436.98.
(Save $5.22)
Out of stock
Description
The SE8350U5B00 combines fan coil and zone control functionality with integrated sensing for both humidity and occupancy detection. With its built-in PIR motion sensor, the controller intelligently adapts HVAC operation based on room usage, improving energy efficiency without sacrificing comfort. Its intuitive touchscreen interface provides multilingual support, enabling quick setup and ease of use across diverse applications.
Designed for hotels, offices, healthcare facilities, schools, and residential environments, this controller ensures consistent comfort with accurate measurement performance. It maintains temperature accuracy within ±0.5 °C and humidity within ±5–10%, ensuring reliable environmental control. Multiple inputs and outputs allow for flexible integration into HVAC systems, while BACnet MS/TP and Modbus RTU communication protocols connect seamlessly with building management systems.
With its sleek silver housing and matte finish, the SE8350U5B00 blends into modern interiors. Features such as humidity control, economizer support, direct display configuration, and firmware updates via USB deliver advanced functionality. Its compliance with international standards, coupled with durable design, makes it a dependable choice for both new installations and retrofit projects.
Specifications
| Specification | Value |
|---|---|
| Part number | SE8350U5B00 |
| Range | EcoStruxure Building Expert |
| Product series | SE8000 Series |
| Product type | Room controller |
| Device application | Low-voltage fan coil, Zone control |
| Device short name | SE8300 |
| Communication protocols | BACnet MS/TP, Modbus RTU |
| Input type | 2 × dry contact, 5 × analog |
| Output type | 5 × relay, 4 × universal |
| Output voltage | 24 V AC relay, 0–10 V DC analog |
| Output current | 1 A relay (3 A inrush), 0.3–1.5 A universal (inrush) |
| Sensor types | 10 kOhm T2 NTC thermistor (temperature), Bulk polymer (humidity), PIR motion |
| Measurement accuracy | ±0.5 °C temperature, ±5–10% humidity |
| Humidity setting range | 30…95 % |
| Temperature setting range | 12…37.5 °C cooling, 4.5…32 °C heating |
| Temperature resolution | 0.1 °C |
| Relative humidity | 0…95 % non-condensing |
| Housing colour | Silver |
| Surface finish | Matte |
| Functions available | Fan control, HVAC control, Humidity control, Economizer, PIR-based occupancy sensing |
| Display type | Color touchscreen |
| Displayed information | Temperature, Humidity, Status |
| Special features | Code lock, PIR occupancy detection, Firmware update by USB, Configurable via display |
| Directives & standards | 2014/30/EU, 2014/35/EU, 2014/53/EU, EN/IEC 60730-1, UL 60730-2-9, FCC Part 15, ICES-003, ETSI EN 300 328 |
| Supply voltage | 24 V AC 50/60 Hz ±15 % |
| Rated current | 4 A |
| Network frequency | 50/60 Hz |
| Ambient operating temperature | 0…50 °C |
| Ambient storage temperature | -30…50 °C |
| Dimensions (L × H × W) | 25 × 120 × 86 mm |
| Net weight | 0.34 kg |
Additional information
| Weight | 0.34 kg |
|---|---|
| Dimensions | 25 × 86 × 120 mm |
