Description

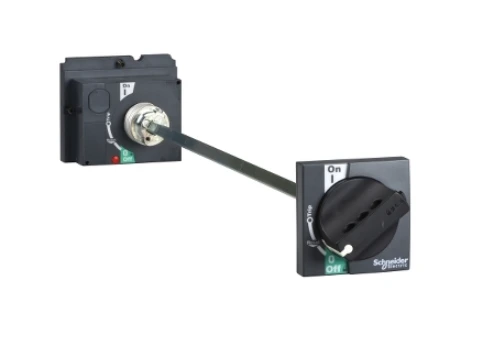

The LV432598 is a durable extended rotary handle by Schneider Electric, engineered for use with ComPact NSX 400/630, PowerPact Multistandard L frames, and EasyPact CVS 400/630 circuit breakers. This handle is designed to allow safe front-panel operation of circuit breakers mounted at the rear of switchboards, making it ideal for standard isolation applications.
Featuring a black standard handle, it provides clear indication of OFF (O), ON (I), and TRIPPED positions. The handle gives continued access to trip unit settings and the push-to-trip button even when mounted.
It has a shaft extension range of 185 mm to 600 mm and is rated IP55 for dust and water protection and IK08 for mechanical impact resistance. The OFF position is padlockable with 1 to 3 padlocks (not included), and it also supports optional keylocks for additional security. Suitable for industrial environments requiring reliable and safe switchboard control.
Specifications
| Feature | Details |
|---|---|
| Product Model | LV432598 |
| Product Type | Extended Rotary Handle |
| Compatible Devices | ComPact NSX 400/630, PowerPact L, EasyPact CVS 400/630 |
| Handle Color | Black |
| Shaft Length | Adjustable 185 mm to 600 mm |
| Mounting Type | Front operation for rear-mounted devices |
| Indication Positions | ON (I), OFF (O), TRIPPED |
| Padlock Capability | Yes, 1–3 padlocks (shackle Ø 5–8 mm) |
| Optional Keylock | Compatible with Ronis or Profalux keylocks |
| Protection Rating | IP55 (dust and water), IK08 (mechanical impact) |
| Package Dimensions (LxWxH) | 48.4 cm × 16.0 cm × 10.0 cm |
| Net Weight | 976 g |
