Description

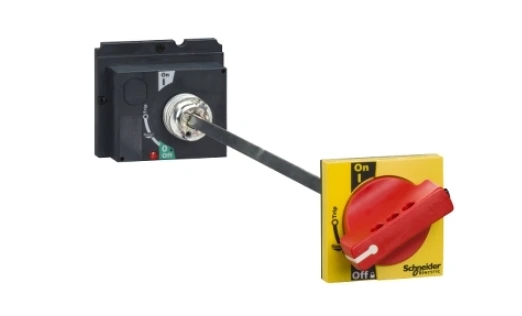

The LV429340 is a robust extended rotary handle from Schneider Electric, specifically designed for ComPact NSX 100/160/250 and PowerPact Multistandard H/J frame circuit breakers. Engineered for standard isolation applications, this handle features a red handle on a yellow front plate, making it ideal for emergency and safety installations.
It provides easy access to the trip unit settings and the push-to-trip button, even when the circuit breaker is mounted at the back of a switchboard. The handle supports a shaft length adjustment from 185 mm to 600 mm, allowing front operation of rear-mounted devices. It features clear ON (I), OFF (O), and TRIPPED indicators, ensuring status visibility.
Designed with IP55 and IK08 ratings, this rotary handle is suitable for tough industrial environments. The OFF position can be padlocked with up to 3 padlocks (not included), and keylock options are available for enhanced security. Ideal for applications requiring remote access and robust safety control.
Specifications
| Feature | Details |
|---|---|
| Product Model | LV429340 |
| Product Type | Extended Rotary Handle |
| Compatible Devices | ComPact NSX 100/160/250, PowerPact H/J Frames |
| Handle Color | Red handle on yellow front |
| Shaft Length | Adjustable 185 mm to 600 mm |
| Mounting Type | Front operation for rear-mounted devices |
| Indication Positions | ON (I), OFF (O), TRIPPED |
| Padlock Capability | Yes, 1–3 padlocks (shackle Ø 5–8 mm) |
| Optional Keylock | Compatible with Ronis or Profalux keylocks |
| Protection Rating | IP55 (dust and water), IK08 (mechanical impact) |
| Package Dimensions (LxWxH) | 49.2 cm × 10.4 cm × 10 cm |
| Net Weight | 690 g |
