Description

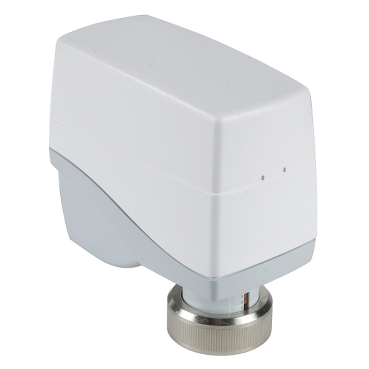

The Schneider Electric LSS513753 is a wireless EnOcean valve actuator from the EcoStruxure Building Expert range, optimized for temperature control applications in small buildings. Operating at 868 MHz, it provides reliable wireless communication with a typical indoor transmission distance of 30 m through walls.
This actuator is fully battery-powered, using three 1.5 V alkaline cells, with an expected service life of up to 3 years. Its design is compact and maintenance-free, featuring a white RAL 9010 housing for seamless integration into building environments. With a 3 mm nominal stroke, 100 N operating force, and operating position tolerance of ±90° from the vertical plane, the actuator ensures precise control of valves in HVAC applications.
Additional features include a built-in LED display for status indication and IP40 protection, making it suitable for indoor installations. It measures 91.5 × 47 × 85 mm and weighs 0.225 kg with batteries installed.
Specifications
| Attribute | Detail |
|---|---|
| Range | EcoStruxure Building Expert |
| Product name | EnOcean |
| Product or component type | Actuator |
| Device application | Temperature control |
| Device mounting | Surface |
| Transmission frequency | 868 MHz |
| Operating distance | 30 m with walls |
| Measurement type | Temperature |
| Measurement range | 0…40 °C ±0.5 °C |
| Housing colour | Pure white (RAL 9010) |
| Power supply type | Battery |
| Battery type | 3 × alkaline 1.5 V |
| Battery life | 3 years |
| Display type | LED |
| Operating position | ±90° to vertical plane |
| Maximum noise figure | 28 dB |
| Service description | Maintenance free |
| Operating force | 100 N |
| Nominal stroke | 3 mm (0.1 in), 10 s |
| Degree of protection | IP40 (EN 60529) |
| Height | 91.5 mm |
| Width | 47 mm |
| Depth | 85 mm |
| Product weight | 0.157 kg (without battery) / 0.225 kg (with battery) |
| Market segment | Small buildings |
