Description
The EnOcean 868MHz Valve Driver – LSS298391 is designed as part of the EcoStruxure Building Expert range, offering a reliable and energy-efficient solution for temperature control in small buildings. It operates with a rated supply voltage of 230V AC, consuming just 9.8 VA while delivering up to 2500W nominal output power, making it both powerful and economical.
Its integrated 868MHz EnOcean antenna provides robust wireless communication, with a range of up to 30 meters through walls and 100 meters in open areas. This ensures flexible installation without the need for extensive cabling, reducing both time and cost during setup. With support for up to ten sensor inputs, the driver allows precise monitoring and control of heating or cooling valves, enabling optimized indoor climate management.

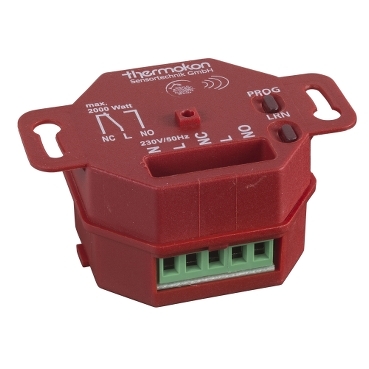

Compact in design, the actuator features a durable ABS enclosure in red, with dimensions of just 35 × 70 × 48 mm and a lightweight build of 0.055 kg. It mounts flush to the wall, providing a neat installation while maintaining IP20 protection against accidental contact. This makes it a practical choice for building automation applications, where performance, reliability, and space-saving design are essential.
SpecificationS
| Attribute | Details |
|---|---|
| Part Number | LSS298391 |
| Range | EcoStruxure Building Expert |
| Product Name | EnOcean |
| Type | Actuator |
| Application | Temperature control |
| Antenna | Integrated |
| Connections | Screw terminal, 1.5 mm² |
| Mounting | Flush |
| Power Consumption | 9.8 VA |
| Nominal Output Power | 2500 W |
| Supply Voltage [Us] | 230 V AC, 50 Hz, ±5% |
| Inputs | 10 sensor |
| Operating Distance | 30 m (with walls), 100 m (without walls) |
| Protection | IP20 (EN 60529) |
| Material | ABS, red |
| Length (mm) | 35 |
| Width (mm) | 70 |
| Height (mm) | 48 |
| Weight (kg) | 0.055 |
| Market Segment | Small buildings |
