Description

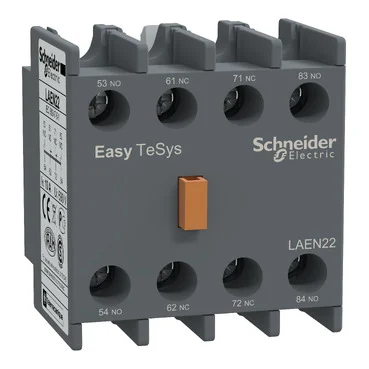

The EasyPact TVS Auxiliary Contact Block (LAEN22) is designed as an add-on module for EasyPact TVS LC1E contactors, offering 2 normally open (2NO) and 2 normally closed (2NC) instantaneous contacts. These contacts are rated up to 10A at 690V AC and are connected via screw clamp terminals for secure wiring.
This contact block includes NC certified mirror contacts, making it suitable for use in safety circuits where reliability is critical. The clip-on front mounting system ensures quick and easy installation without the need for special tools.
Built for high durability, the LAEN22 meets multiple international standards (IEC, UL, CSA, CCC, EAC, Marine) and is Green Premium compliant (RoHS/REACh), ensuring environmentally responsible performance. Its compact size and robust design make it an excellent choice for signalling, control, and interlocking functions in various industrial applications.
Specifications
| Attribute | Value |
|---|---|
| Part Number | LAEN22 |
| Range | Easy TeSys |
| Range of Product | Easy TeSys Control |
| Product or Component Type | Auxiliary contact block |
| Device Application | Signalling |
| Device Short Name | LAEN |
| Contact Composition | 2NO + 2NC |
| Contact Type | Instantaneous |
| Terminal Type | Screw clamp |
| Rated Operational Current | 10A at 690V AC |
| Mounting Position | Front mount (clip-on) |
| Special Features | NC certified mirror contacts (safety) |
| Colour | Grey (RAL 7011) |
| Compliance | IEC, UL, CSA, CCC, EAC, Marine, Green Premium (RoHS/REACh) |
| Package Height | 38 mm |
| Package Width | 45 mm |
| Package Length | 50 mm |
| Package Weight | 61 g |
