Description

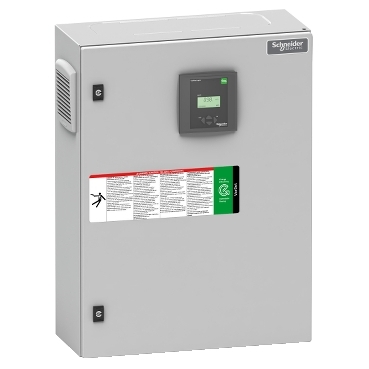

The EasyLogic VarSet Automatic PFC Capacitor Bank, reference VLVAW1L100A40A, is a low-voltage power factor correction solution within the PowerLogic range. It is designed to compensate for reactive power generated by inductive loads, thereby improving energy efficiency, reducing electricity penalties, lowering capital costs, and contributing to CO₂ emission reduction.
This model provides a reactive power rating of 100 kVar and operates on 400 V or 415 V AC networks at 50 Hz. It functions in automatic mode, with compensation dynamically adjusted by a VarplusLogic power factor controller. The system includes Modbus communication (RS485), enabling integration with power management and EcoStruxure Power systems for smart monitoring and IoT-based energy management.
It incorporates high-life-expectancy Varplus capacitors, designed according to IEC 831 Parts 1 & 2, and the overall system complies with CE, IEC 61921, IEC 61439-1, and IEC 61439-2 standards.
The enclosure is wall-mounted, finished in RAL7035 light grey, with top-entry incoming connections protected by a circuit breaker. Standard protection rating is IP31, with optional kits available to upgrade to IP54. It is particularly suitable for applications with variable or unstable loads in commercial and industrial environments.
Specifications
| Feature | Specification |
|---|---|
| Range | PowerLogic |
| Product Name | EasyLogic VarSet Automatic PFC Capacitor Bank |
| Device Short Name | Automatic Capacitor Bank |
| Product Type | Capacitor Bank |
| Operating Mode | Automatic |
| Reactive Power Rating | 100 kVar |
| Network Voltage | 400 V AC / 415 V AC |
| Frequency | 50 Hz |
| Communication | Modbus (RS485) |
| Standards | IEC 61921, IEC 61439-1, IEC 61439-2, IEC 831 Parts 1 & 2 |
| Enclosure Rating | IP31 (Optional IP54) |
| Mounting | Wall-mounted |
| Colour | RAL7035 |
| Height | 800 mm |
| Width | 600 mm |
| Depth | 250 mm |
| Weight | 59.641 kg |
