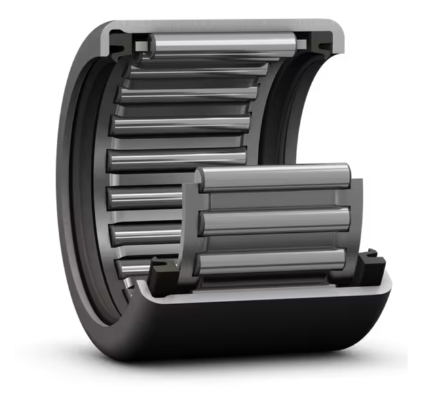

Drawn Cup Needle Roller Bearing – HK 1216.2RS

The HK 1216.2RS Drawn Cup Needle Roller Bearing is a high-performance, space-saving solution for applications requiring high radial load capacity with minimal cross-sectional height. Featuring integral sealing on both sides, this bearing prevents contamination and retains lubrication, ensuring extended service life and reliable operation.

Manufactured from premium bearing steel, the one-row drawn cup design provides excellent stiffness and durability. Pre-filled with grease lubrication, this bearing requires minimal maintenance, making it ideal for gearboxes, transmissions, automotive systems, and industrial machinery.

Specification:

• Bore Diameter: 12 mm

• Outer Diameter: 18 mm

• Width: 16 mm

• Load Ratings: 6.27 kN (dynamic), 7.35 kN (static)

• Speed Rating: 10,000 r/min (limiting)

• Sealing: Contact seal on both sides

• Bearing Part: Without inner ring

• Number of Rows: 1

• Cage Type: Sheet steel

• Outer Ring Type: Drawn cup with open ends

• Material: Bearing steel

• Lubrication: Pre-filled grease

• Relubrication Feature: Without

• Net Weight: 0.0107 kg
