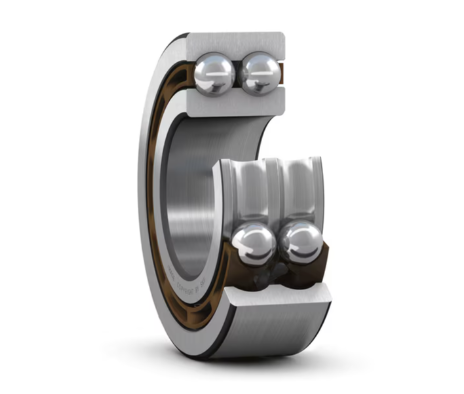

Double Row Deep Groove Ball Bearing – 4206 ATN9

he 4206 ATN9 Double Row Deep Groove Ball Bearing is designed for applications requiring high radial and axial load capacity while maintaining smooth and efficient performance at high speeds. Built with a non-metallic cage, it provides low friction operation and is more robust than single row bearings of the same size.

This bearing’s double-row design allows it to handle higher loads and enhance durability, making it ideal for applications where reliability and minimal maintenance are key.

Specification:

• Bore Diameter: 30 mm

• Outer Diameter: 62 mm

• Width: 20 mm

• Load Ratings: 26 kN (dynamic), 20.8 kN (static)

• Speed Ratings: 17,000 r/min (reference), 9,500 r/min (limiting)

• Number of Rows: 2

• Cage Type: Non-metallic

• Radial Internal Clearance: CN

• Material: Bearing steel

• Sealing: Without

• Lubrication: None

• Coating: Without

• Relubrication Feature: Without

• Net Weight: 0.257 kg
