Description

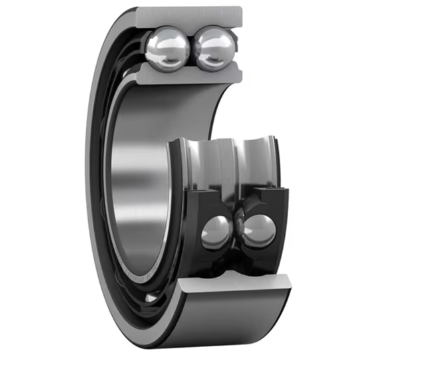

The 3311 ATN9/C3 Double Row Angular Contact Ball Bearing is designed to efficiently handle high radial and axial loads while occupying less axial space compared to two single-row angular contact bearings. With a back-to-back (O) arrangement and a 30° contact angle, this bearing offers enhanced rigidity and stability, making it ideal for applications requiring a stiff bearing setup.
Engineered with SKF Explorer-class precision, it delivers high-speed capability, reduced friction, and excellent performance under demanding conditions. The C3 axial internal clearance ensures smooth operation, while the non-metallic cage reduces weight and enhances efficiency. Suitable for industrial machinery, pumps, gearboxes, and automation systems, this bearing is a reliable and cost-effective solution for high-load applications.
Specification:
-
Bore Diameter: 55 mm
-
Outer Diameter: 120 mm
-
Width: 49.2 mm
-
Contact Angle: 30°
-
Load Ratings: 112 kN (dynamic), 81.5 kN (static)
-
Speed Rating: 6,000 r/min (reference), 5,300 r/min (limiting)
-
Number of Rows: 2
-
Cage Type: Non-metallic
-
Arrangement: Back-to-back (O)
-
Axial Internal Clearance: C3
-
Material: Bearing Steel
-
Sealing: None (open bearing)
-
Lubrication: None (requires external lubrication)
-
Net Weight: 2.19 kg
