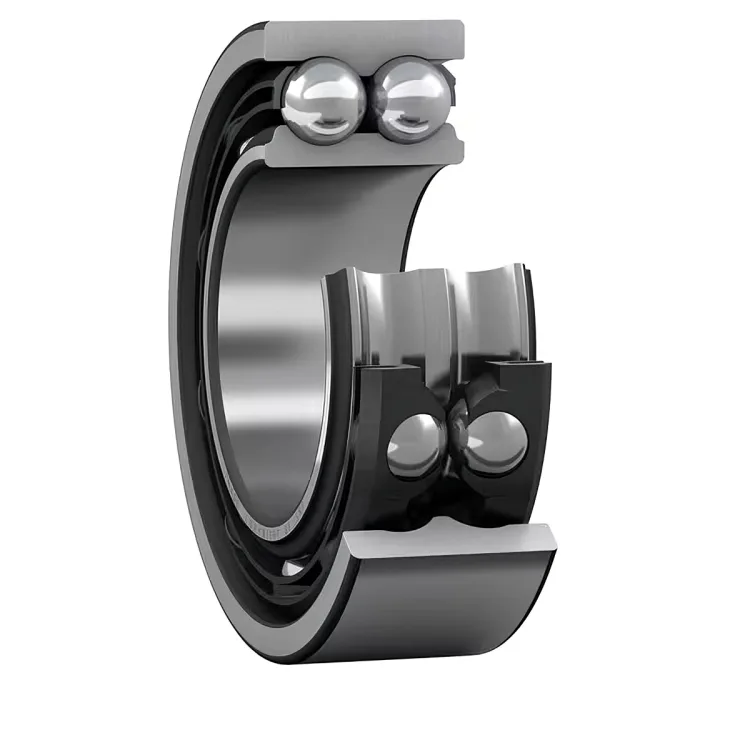

Double Row Angular Contact Ball Bearing – 3305 ATN9
The 3305 ATN9 double row angular contact ball bearing combines high-speed capability with strong radial and axial load support. Designed with a back-to-back arrangement in a compact form, it ensures stiffness, accommodates tilting moments, and requires less axial space compared to paired single row bearings.
Original price was: $43.47.$41.20Current price is: $41.20.
(Save $2.27)
In stock
Description
The 3305 ATN9 is a high-performance double row angular contact ball bearing designed to operate under demanding conditions. Functionally equivalent to a matched pair of single row angular contact bearings in a back-to-back (O) arrangement, it provides superior rigidity and stability. This design enables the bearing to support high radial loads, heavy axial loads in both directions, and resist tilting moments, making it highly versatile.
With a 30° contact angle and compact construction, the 3305 ATN9 saves axial space without compromising performance—ideal for applications where installation space is limited. Its non-metallic cage ensures low friction, reduced noise, and stable high-speed operation, while its precision-engineered bearing steel construction provides durability under challenging conditions.
As part of the SKF Explorer performance class, the 3305 ATN9 offers enhanced load ratings, improved efficiency, extended service life, and consistent reliability in demanding applications such as gearboxes, pumps, compressors, and other precision machinery.
Specifications:
| Feature | Value |
|---|---|
| Part Number | 3305 ATN9 |
| Bearing Type | Angular contact ball bearing |
| Design | Double row, back-to-back (O arrangement) |
| Bore Diameter | 25 mm |
| Outside Diameter | 62 mm |
| Width | 25.4 mm |
| Contact Angle | 30° |
| Basic Dynamic Load Rating | 32.5 kN |
| Basic Static Load Rating | 22 kN |
| Reference Speed | 11,000 r/min |
| Limiting Speed | 11,000 r/min |
| SKF Performance Class | SKF Explorer |
| Number of Rows | 2 |
| Contact Type | Normal two-point contact |
| Locating Feature (Outer Ring) | Without |
| Ring Type | One-piece inner and outer rings |
| Cage Material | Non-metallic |
| Matched Arrangement | No |
| Universal Matching | No |
| Axial Internal Clearance | CN |
| Material | Bearing steel |
| Coating | Without |
| Sealing | Without |
| Lubricant | None |
| Relubrication Feature | Without |
| Carbon Footprint | 1.21 kg CO₂e |
| Product Net Weight | 0.336 kg |
| eClass Code | 23-05-08-03 |
| UNSPSC Code | 31171531 |
Additional information
| Weight | 0.336 kg |
|---|
