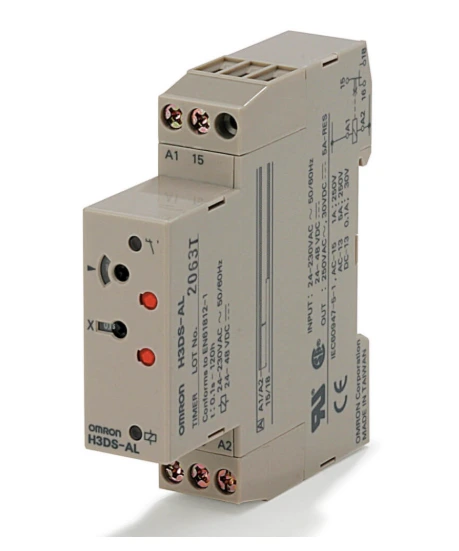

DIN Rail Mounting Timer – H3DS-AL AC/DC
Omron H3DS-AL AC/DC Analog Timer – DIN rail mount, ON-delay, SPDT relay output, 0.1 s–120 h, 24–230 VAC / 24–48 VDC, 5 A, compact 17.5 mm housing with Smart Dial lockable settings.
Original price was: $66.83.$63.33Current price is: $63.33.
(Save $3.50)
In stock
Description
The Omron H3DS-AL AC/DC is a compact, reliable analog timer designed for precise time control in automation and process applications. With a single ON-delay function and wide time range from 0.1 seconds to 120 hours, it provides versatile timing control for a broad range of systems.
This timer supports both AC (24–230 V) and DC (24–48 V) supply voltages, making it highly adaptable to different installations. The SPDT relay output (5 A) ensures dependable switching, while the Smart Dial lockable setting enhances accuracy and prevents accidental adjustments.
Its slim 17.5 mm DIN rail mountable housing saves panel space, and the screw terminal design makes wiring straightforward and secure. Ideal for industrial automation, machinery control, and process sequencing, the Omron H3DS-AL combines simplicity, durability, and precision.
Specifications
| Feature | Specification |
|---|---|
| Product Type | Analog Timer |
| Model | H3DS-AL AC/DC |
| Installation Type | DIN rail |
| Size | 17.5 mm |
| Functions | Single function |
| Operating Mode | ON Delay (Power ON Start) |
| Output Type | Relay |
| Contact Form | SPDT |
| Rated Output Current | 5 A |
| Time Range | 0.1 s – 120 h |
| Supply Voltage (AC) | 24–230 V |
| Supply Voltage (DC) | 24–48 V |
| Terminal Type | Screw |
| Features | Smart Dial lockable settings, Compact design |
| Applications | Automation panels, Machinery timing control, Process sequencing |
Additional information
| Weight | 0.1 kg |
|---|
