Description

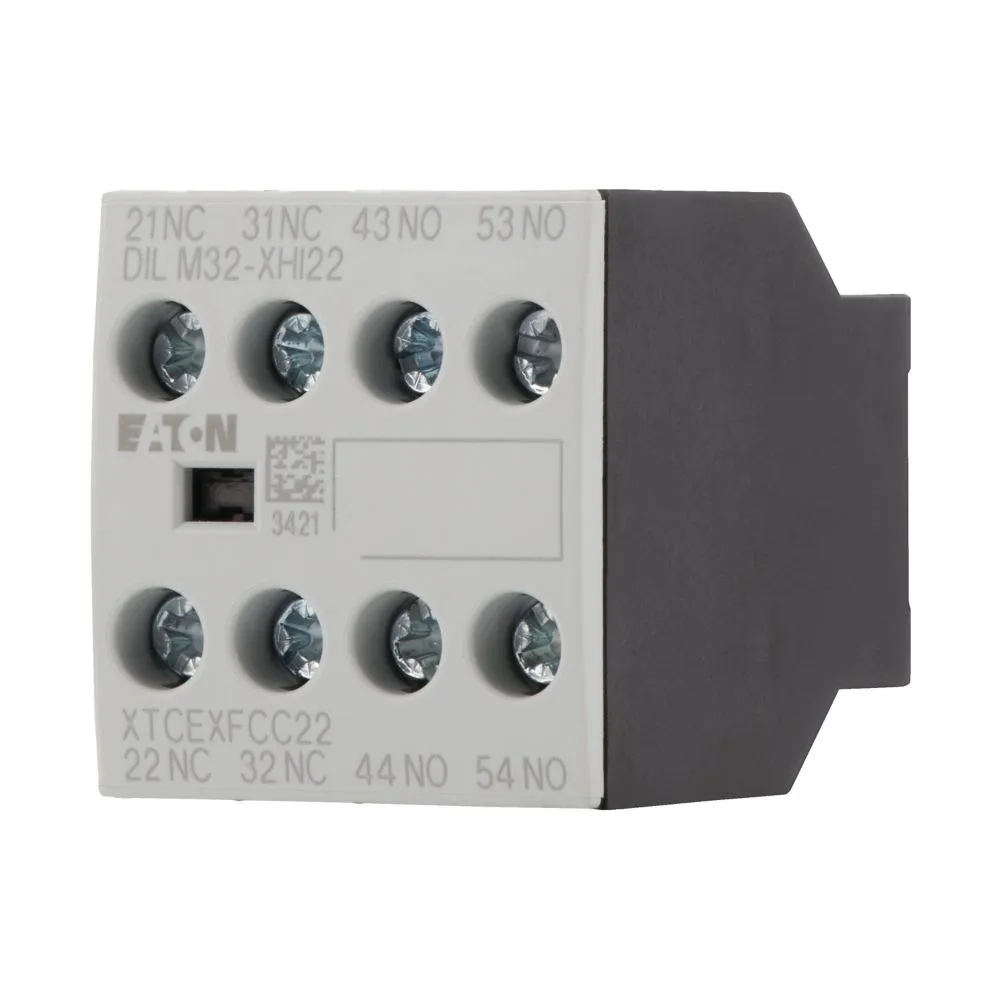

The Eaton Moeller series DILM32-XHI22 auxiliary contact module is a compact and reliable add-on accessory designed for use with DILM7-10 through DILM38-10 contactors.
It provides four auxiliary contacts (2 normally open + 2 normally closed) with a conventional thermal current (Ith) rating of 16 A, making it suitable for a wide range of signaling, interlocking, and control circuit applications.
The module features front fastening with screw terminals for quick and secure installation, ensuring compatibility with Eaton’s modular DILM system. Built to IEC/EN 60947 standards, it ensures high control circuit reliability with a failure rate of less than 1 in 2,000,000 operations at 24 V DC.
With an IP20 protection rating, the DILM32-XHI22 is safe for panel mounting and provides durable performance in industrial automation, motor control, and power distribution systems.
Specifications
| Category | Details |
|---|---|
| Manufacturer | Eaton |
| Series | Moeller® DILM Auxiliary Contact Module |
| Catalog Number | 277377 |
| Model Code | DILM32-XHI22 |
| Product Type | Auxiliary contact block |
| Number of Poles | 4 (2 NO + 2 NC) |
| Conventional Thermal Current (Ith) | 16 A |
| Mounting Method | Front fastening |
| Connection | Screw terminals |
| Applicable Contactors | DILM7-10 to DILM38-10 |
| Degree of Protection | IP20 |
| Overvoltage Category | III |
| Control Circuit Reliability | λ < 5 × 10⁻⁷ failures (at Ue = 24 V DC) |
| Standards Compliance | IEC/EN 60947-4-1, IEC/EN 60947 |
| Certifications | UL 508, CSA, CE, VDE 0660 |
| Dimensions (L × H × W) | 45 × 38 × 36 mm |
| Weight | 0.048 kg |
