Description

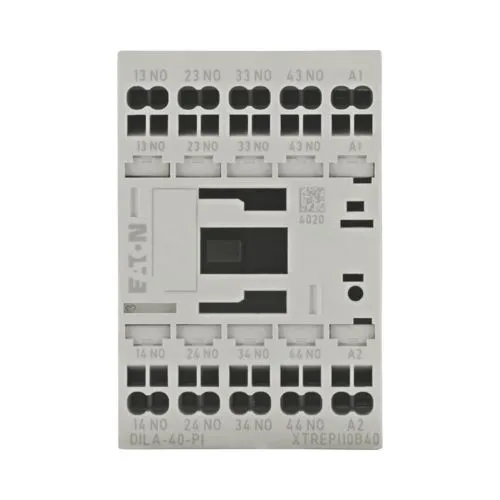

The Eaton Moeller® series DILA-40(24VDC)-PI Contactor Relay is designed for control circuit applications with high durability and reliability.
It features 4 normally open (N/O) contacts, push-in terminals, and operates on 24 V DC.
The relay integrates a built-in suppressor circuit with varistor, ensuring enhanced protection against voltage surges.
Engineered for 20 million mechanical operations, it provides positive operating contacts in compliance with EN 60947-5-1 appendix L.
Its IP20 protection, DIN-rail/screw mounting, and compliance with international certifications make it suitable for global industrial use.
Specifications
| Category | Details |
|---|---|
| Manufacturer | Eaton |
| Product Series | Moeller® DILA |
| Catalog Number | 199208 |
| Model Code | DILA-40(24VDC)-PI |
| Product Category | Contactor relays |
| Application | Control relay |
| Function | 4 N/O contacts |
| Operation | DC |
| Rated Coil Voltage | 24 V DC |
| Connection | Push-in terminals |
| Features | Built-in suppressor circuit, Varistor suppressor, Positive operation contacts |
| Protection | IP20, finger and back-of-hand proof |
| Mounting Method | DIN-rail or screw |
| Shock Resistance | 5 g (N/C), 7 g (N/O) |
| Mechanical Lifespan | 20,000,000 operations (DC operated) |
| Operating Frequency | 9000 operations/h |
| Overvoltage Category | III |
| Pollution Degree | 3 |
| Rated Impulse Withstand Voltage (Uimp) | 6000 V AC |
| Voltage Type | DC |
| Compliance | CE Marked, UL, CSA, VDE |
| Certifications | IEC/EN 60947, EN 60947-5-1, VDE 0660, CSA File No. 012528, UL File No. E29184, UL 508, CSA-C22.2 No. 14-05 |
| Dimensions (L × H × W) | 75 × 68 × 45 mm |
| Weight | 0.287 kg |
