Digital Output Unit – CJ1W-OD212

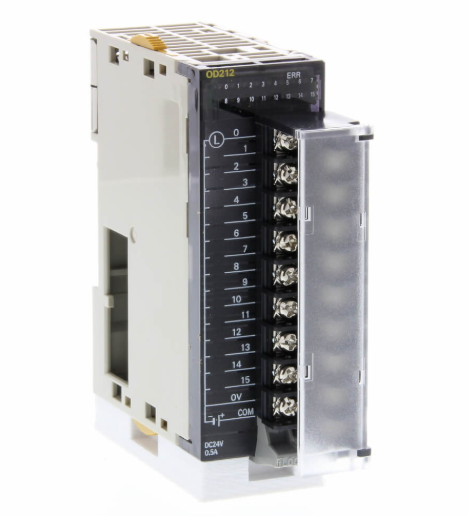

Omron CJ1W-OD212 Digital Output Unit – 16-channel PNP transistor outputs, 24 VDC, 0.5 A per channel, with short-circuit protection and screw terminal connection.
Original price was: $344.35.$326.35Current price is: $326.35.
(Save $18.00)
In stock
Description
The Omron CJ1W-OD212 is a basic I/O digital output unit for CJ-series PLCs, offering 16 transistor outputs (PNP type) designed for reliable and efficient control of DC loads. With an output capacity of 0.5 A per channel at 24 VDC and built-in load short-circuit protection, it provides safe and stable operation in demanding industrial environments.
This compact module features a screw terminal interface, ensuring secure wiring and easy installation. Operating on the CJ I/O bus, it delivers fast and dependable digital output performance, making it ideal for automation, machinery, and process control applications.
Specifications
| Feature | Specification |
|---|---|
| Product Type | Digital Output Unit |
| Model | CJ1W-OD212 |
| System | CJ I/O Bus |
| Expansion Type | Basic I/O Unit |
| Type of Module | Digital I/O |
| Number of Digital Outputs | 16 |
| Output Type | PNP Transistor |
| Output Voltage Range | 20.4 – 26.4 VDC |
| Output Current | 0.5 A per channel |
| Protection | Load short-circuit protection |
| Connection Type | Screw terminal |
| Height | 90 mm |
| Width | 31 mm |
| Depth | 89 mm |
| Weight | 64 g |
| Applications | Industrial automation, machine control, process systems |
Additional information
| Weight | 0.064 kg |
|---|---|
| Dimensions | 89 × 31 × 90 mm |
