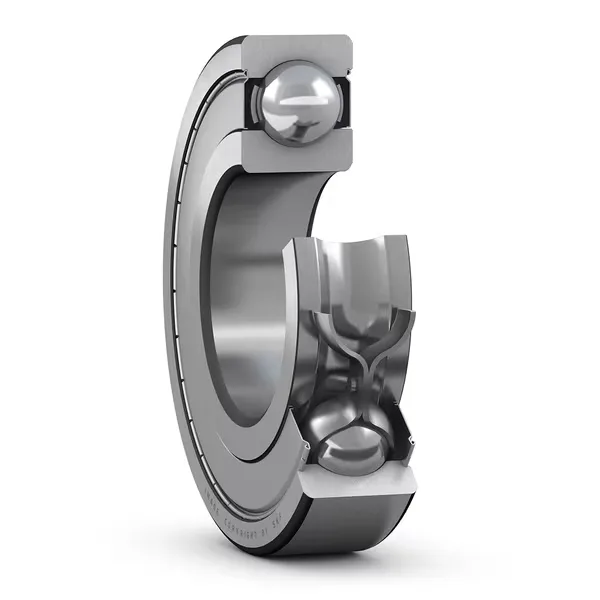

Deep Groove Ball Bearing with Shields – 6206-2Z/C3
High-performance single row deep groove ball bearing with double non-contact shields and C3 internal clearance, designed for smooth, low-noise operation, high-speed capability, and extended service life in demanding applications.
Original price was: $6.45.$6.12Current price is: $6.12.
(Save $0.33)
In stock
Description
The SKF 6206-2Z/C3 is a premium SKF Explorer deep groove ball bearing designed with a 30 mm bore, 62 mm outside diameter, and 16 mm width. Its robust construction and optimized internal geometry ensure superior load distribution, low friction, and reliable operation under both radial and axial loads.
Equipped with shields on both sides, this bearing retains grease effectively while preventing the ingress of contaminants, prolonging service life and reducing maintenance needs. The C3 internal clearance provides additional room for thermal expansion, making it suitable for higher speeds or elevated operating temperatures. With its sheet metal cage and bearing steel design, the 6206-2Z/C3 is trusted for performance in motors, pumps, fans, conveyors, and a wide range of industrial machinery.
Specifications
| Attribute | Value |
|---|---|
| Part number | 6206-2Z/C3 |
| Bearing type | Deep groove ball bearing |
| Number of rows | 1 |
| Bore diameter | 30 mm |
| Outside diameter | 62 mm |
| Width | 16 mm |
| Basic dynamic load rating | 20.3 kN |
| Basic static load rating | 11.2 kN |
| Reference speed | 24 000 r/min |
| Limiting speed | 12 000 r/min |
| SKF performance class | SKF Explorer |
| Bore type | Cylindrical |
| Cage | Sheet metal |
| Radial internal clearance | C3 |
| Filling slots | Without |
| Locating feature, outer ring | Without |
| Matched arrangement | No |
| Material, bearing | Bearing steel |
| Coating | Without |
| Sealing | Shield on both sides |
| Sealing type | Non-contact |
| Lubricant | Grease |
| Relubrication feature | Without |
| Product net weight | 0.201 kg |
| Indicative carbon footprint (manufacture) | 0.724 kg CO₂e |
| eClass code | 23-05-08-01 |
| UNSPSC code | 31171504 |
Additional information
| Weight | 0.201 kg |
|---|---|
| Dimensions | 30 × 16 × 62 mm |
