Description

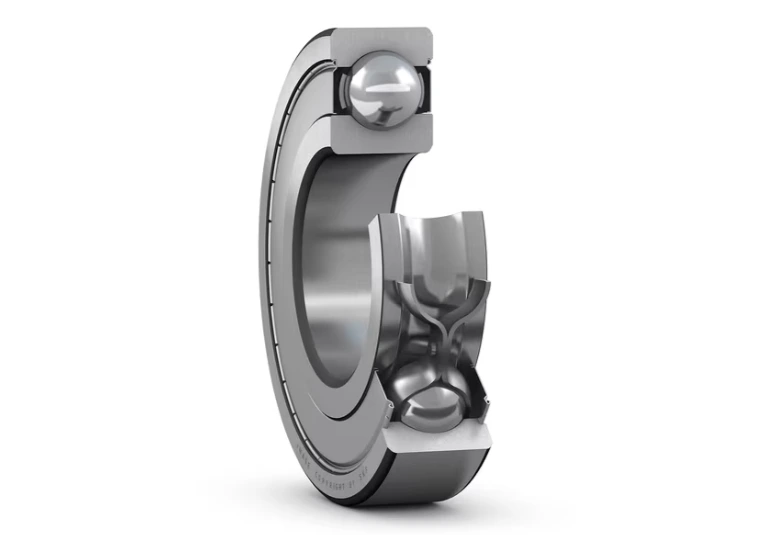

The SKF 6002-2Z/C3 deep groove ball bearing is a compact and versatile solution for high-speed applications. Built with a simple yet robust single-row design, it is optimized for low friction, reduced vibration, and quiet operation, making it suitable for precision equipment as well as general industrial machinery.
Equipped with non-contact shields on both sides, this bearing retains grease while effectively blocking out dust and contaminants, thereby prolonging service life and reducing the need for maintenance. Its C3 radial internal clearance allows for higher than normal operating tolerances, supporting reliable performance under increased speed or thermal expansion.
As part of the SKF Explorer performance class, the 6002-2Z/C3 offers improved wear resistance, extended bearing life, and optimized performance even in demanding operating conditions. Lightweight yet durable, it is well-suited for applications requiring dependable rotation, long service intervals, and efficiency.
Specifications
| Attribute | Value |
|---|---|
| Part Number | 6002-2Z/C3 |
| Product Name | Deep groove ball bearing with shields |
| Bearing Type | Deep groove ball bearing |
| SKF Performance Class | SKF Explorer |
| Number of Rows | 1 |
| Bore Type | Cylindrical |
| Bore Diameter | 15 mm |
| Outside Diameter | 32 mm |
| Width | 9 mm |
| Cage Material | Sheet metal |
| Radial Internal Clearance | C3 |
| Filling Slots | Without |
| Matched Arrangement | No |
| Sealing | Shield on both sides |
| Sealing Type | Non-contact |
| Lubricant | Grease |
| Relubrication Feature | Without |
| Material | Bearing steel |
| Coating | Without |
| Locating Feature (Outer Ring) | Without |
| Basic Dynamic Load Rating | 5.85 kN |
| Basic Static Load Rating | 2.85 kN |
| Reference Speed | 50,000 r/min |
| Limiting Speed | 26,000 r/min |
| Indicative Carbon Footprint (Manufacture) | 0.112 kg CO₂e |
| Product Net Weight | 0.031 kg |
| eClass Code | 23-05-08-01 |
| UNSPSC Code | 31171504 |
