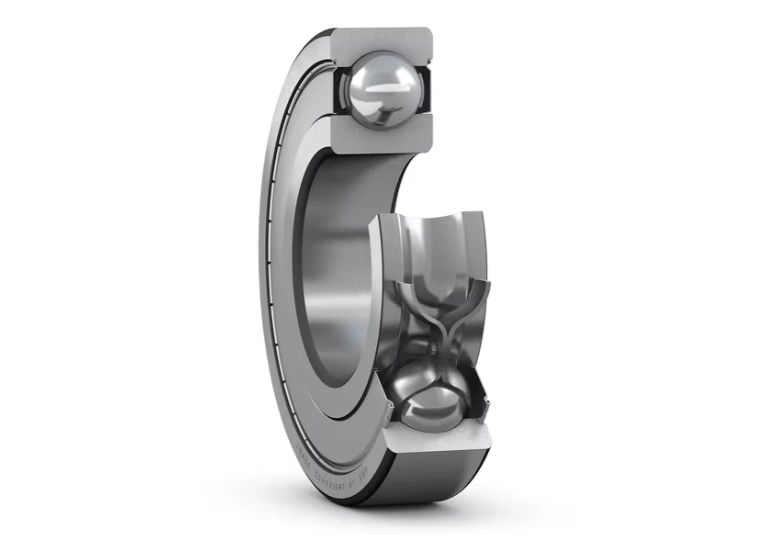

Deep Groove Ball Bearing with Seals or Shields – 6217-2Z/C3
SKF 6217-2Z/C3 Deep Groove Ball Bearing – High-quality single-row bearing with double metal shields for reliable, low-friction performance. Designed for quiet operation and high speeds, it handles both radial and axial loads with minimal maintenance.
Original price was: $99.55.$94.34Current price is: $94.34.
(Save $5.21)Description
The SKF 6217-2Z/C3 Deep Groove Ball Bearing is a premium bearing engineered for durability, efficiency, and smooth operation. With double non-contact metal shields, it retains lubrication and keeps out contaminants, significantly extending service life.
Optimized for low friction and reduced vibration, this single-row deep groove ball bearing can handle both radial and axial loads in either direction, making it ideal for versatile industrial applications. Its simple yet robust design ensures easy installation, dependable operation, and less need for maintenance.
As part of the SKF Explorer class, the 6217-2Z/C3 offers improved load capacity, higher speed capability, and longer service life compared to standard bearings—making it suitable for use in electric motors, pumps, gearboxes, fans, and other high-demand machinery.
Specifications
Category | Details |
---|---|
Bearing Type | Deep Groove Ball Bearing (Single Row) |
Model | 6217-2Z/C3 |
Performance Class | SKF Explorer |
Bore Diameter | 85 mm |
Outside Diameter | 150 mm |
Width | 28 mm |
Dynamic Load Rating (C) | 87.1 kN |
Static Load Rating (C₀) | 64 kN |
Reference Speed | 9,000 r/min |
Limiting Speed | 4,500 r/min |
Radial Internal Clearance | C3 |
Sealing | Shields on both sides (Non-contact) |
Lubrication | Greased, maintenance-free |
Cage Material | Sheet metal |
Bore Type | Cylindrical |
Material | Bearing steel |
Relubrication Feature | Without |
Net Weight | 1.83 kg |
Carbon Footprint (Manufacture) | 6.58 kg CO₂e |
Classification Codes | eClass: 23-05-08-01 / UNSPSC: 31171504 |
Additional information
Weight | 1.83 kg |
---|---|
Dimensions | 150 × 28 mm |
