Description

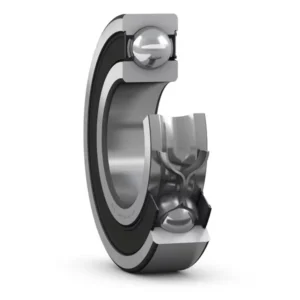

The SKF 6005-2RSH/C3 deep groove ball bearing is engineered for versatile applications requiring durability, reduced maintenance, and consistent performance. Featuring contact seals on both sides, it ensures that lubricant remains inside the bearing while effectively blocking out dust, dirt, and other contaminants, thereby prolonging service life.
Constructed from high-grade bearing steel with a sheet metal cage, this bearing combines robustness with optimized geometry for smooth, low-vibration operation. The C3 internal clearance provides additional space for thermal expansion, making it particularly suitable for higher speed and demanding operating conditions.
As part of the SKF Explorer class, the 6005-2RSH/C3 delivers enhanced load-carrying capacity, longer service life, and improved energy efficiency, making it ideal for a wide range of industrial and mechanical applications.
Specifications
| Attribute | Value |
|---|---|
| Part Number | 6005-2RSH/C3 |
| Product Name | Deep groove ball bearing with seals |
| Bearing Type | Single row deep groove |
| Bore Diameter | 25 mm |
| Outside Diameter | 47 mm |
| Width | 12 mm |
| Basic Dynamic Load Rating | 11.9 kN |
| Basic Static Load Rating | 6.55 kN |
| Reference Speed | 32,000 r/min |
| Limiting Speed | 9,500 r/min |
| SKF Performance Class | SKF Explorer |
| Number of Rows | 1 |
| Filling Slots | Without |
| Bore Type | Cylindrical |
| Cage | Sheet metal |
| Radial Internal Clearance | C3 |
| Sealing | Seal on both sides |
| Sealing Type | Contact |
| Lubrication | Grease |
| Relubrication Feature | Without |
| Material | Bearing steel |
| Coating | Without |
| Matched Arrangement | No |
| Product Net Weight | 0.0797 kg |
| Indicative Product Carbon Footprint | 0.287 kg CO2e |
| eClass Code | 23-05-08-01 |
| UNSPSC Code | 31171504 |
