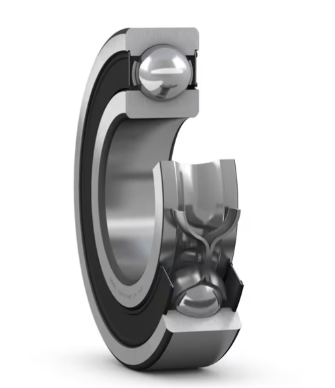

Deep groove ball bearing – 6305-2RS1/C3

The 6305-2RS1/C3 Deep Groove Ball Bearing is engineered for smooth, low-friction operation in high-speed industrial applications. Its dual contact seals (2RS1) prevent dust, debris, and moisture ingress while keeping the factory-lubricated grease inside, significantly extending its service life. With a C3 clearance, it is ideal for applications with higher thermal expansion and operating speeds. Made from premium bearing steel and featuring a sheet metal cage, this SKF Explorer-class bearing ensures durability and minimal maintenance.

Specifications:

• Bore Diameter: 0.984 in (25 mm)

• Outside Diameter: 2.441 in (62 mm)

• Width: 0.669 in (17 mm)

• Load Rating: 5,261 lbf (Dynamic), 2,608 lbf (Static)

• Limiting Speed: 7,500 r/min

• Material: Bearing Steel

• Sealing: Seals on Both Sides (2RS1, Contact)

• Clearance: C3 (Higher Speed & Thermal Expansion Tolerance)

• Lubrication: Pre-greased (Sealed for life)
