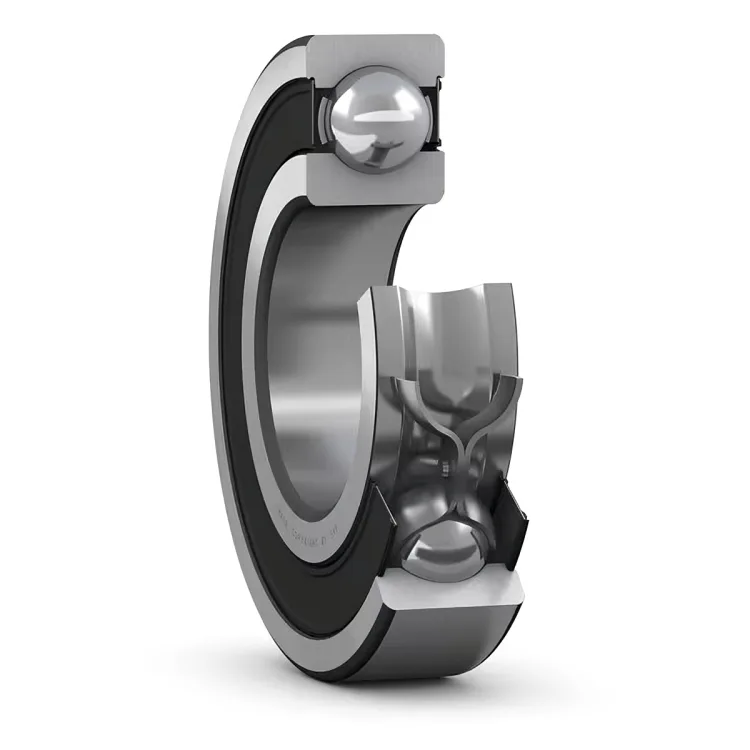

Deep Groove Ball Bearing – 6224-2RS1
Sealed single row deep groove ball bearing with a 120 mm bore, designed for high load capacity, smooth operation, and long service life. Equipped with contact seals on both sides to retain grease and protect against contaminants.
Original price was: $291.07.$275.85Current price is: $275.85.
(Save $15.22)
In stock
Description
The 6224-2RS1 deep groove ball bearing is a heavy-duty, sealed single row bearing built for durability and efficiency. Its integral contact seals on both sides help keep grease in while preventing contaminants from entering, significantly prolonging bearing life and reducing maintenance needs. This makes it an excellent choice for demanding applications where reliability is critical.
With dimensions of 120 mm bore, 215 mm outside diameter, and 40 mm width, the 6224-2RS1 provides a robust solution for high load-bearing applications. It delivers a basic dynamic load rating of 146 kN and a static load rating of 118 kN, while maintaining smooth performance with reduced noise and vibration. The CN internal clearance ensures reliable operation under normal conditions.
Manufactured from premium bearing steel, featuring a sheet metal cage, and pre-lubricated with grease, this bearing is designed for long-lasting operation. Its limiting speed of 1,900 r/min ensures stable function under demanding environments. Suitable for large motors, pumps, heavy industrial equipment, and applications where long service intervals and contamination resistance are essential.
Specifications
| Attribute | Details |
|---|---|
| Part Number | 6224-2RS1 |
| Bearing Type | Deep groove ball bearing with seals |
| Number of Rows | 1 |
| Bore Diameter | 120 mm |
| Outside Diameter | 215 mm |
| Width | 40 mm |
| Radial Internal Clearance | CN |
| Tolerance Class | Normal |
| Cage | Sheet metal |
| Bore Type | Cylindrical |
| Filling Slots | Without |
| Locating Feature (Outer Ring) | Without |
| Sealing | Seal on both sides |
| Sealing Type | Contact |
| Lubricant | Grease |
| Relubrication Feature | Without |
| Material | Bearing steel |
| Coating | Without |
| Basic Dynamic Load Rating | 146 kN |
| Basic Static Load Rating | 118 kN |
| Reference Speed | – |
| Limiting Speed | 1,900 r/min |
| SKF Performance Class | Standard |
| Net Weight | 5.39 kg |
| Indicative Product Carbon Footprint | 19.4 kg CO₂e |
| eClass Code | 23-05-08-01 |
| UNSPSC Code | 31171504 |
Additional information
| Weight | 5.39 kg |
|---|
