Description

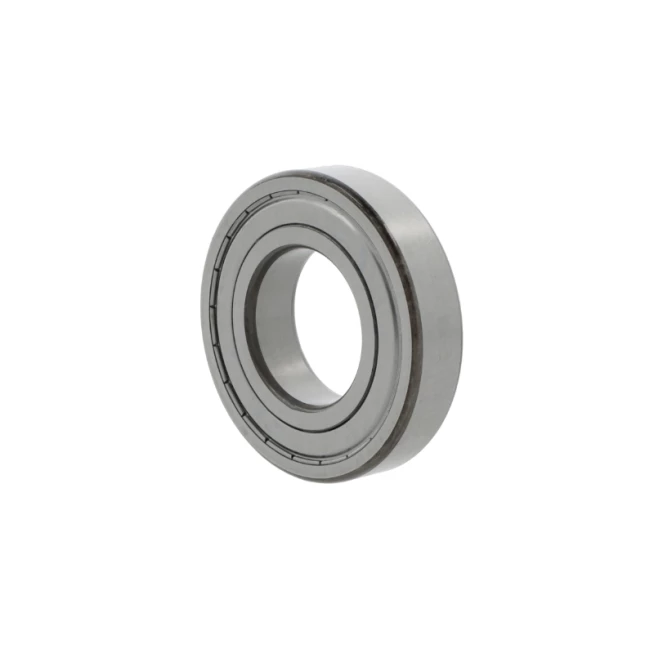

Boost your equipment’s performance with the NTN 6215-2Z/C3/2AS Deep Groove Ball Bearing, designed for high-speed, low-friction operation in demanding industrial environments. This single-row bearing features a 75mm inner diameter, 130mm outer diameter, and 25mm width, making it ideal for electric motors, gearboxes, and other rotating machinery.
Equipped with dual sheet metal shields, it offers superior protection against dust and debris, while the C3 radial clearance ensures smooth rotation under higher speeds and heavier loads. The /2AS suffix indicates a snap ring groove on the outer ring, providing flexible mounting options.
Crafted from premium bearing steel and fitted with a sheet steel cage, this bearing operates reliably across a wide temperature range of -20°C to +120°C. It meets ABEC 1 tolerance standards, ensuring consistent performance and reduced vibration.
Specification
| Category | Details |
|---|---|
| Brand | NTN |
| Model | 6215-2Z/C3/2AS |
| Bearing Type | Deep groove ball bearing |
| Ball Rows | Single row |
| Inner Diameter | 75 mm |
| Outer Diameter | 130 mm |
| Width | 25 mm |
| Weight | 1.18 kg |
| Seal Type | Sheet metal (both sides) |
| Radial Clearance | C3 (slightly increased) |
| Bore Type | Cylindrical |
| Outer Ring | With snap ring groove |
| Material | Normal bearing steel |
| Cage Type | Sheet steel cage |
| Tolerance Class | P0/PN2 / ABEC 1 |
| Temperature Range | -20°C to +120°C |
| Electrical Insulation | None |
