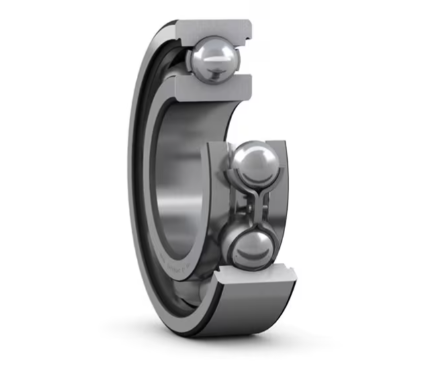

Deep Groove Ball Bearing – 6208

The SKF 6208 deep groove ball bearing is a high-quality, single-row bearing engineered for efficiency and longevity. Designed to handle both radial and axial loads in both directions, it features low friction and optimized performance for quiet, high-speed operation. With its robust bearing steel construction, cylindrical bore, and precision-engineered sheet metal cage, this bearing ensures reliable performance across various mechanical and industrial applications. As part of the SKF Explorer class, it offers enhanced durability and minimal maintenance requirements, making it a cost-effective solution for demanding environments.

Specification:

• Bore Diameter: 40 mm

• Outside Diameter: 80 mm

• Width: 18 mm

• Load Rating: 32.5 kN (Dynamic), 19 kN (Static)

• Reference Speed: 18,000 rpm

• Limiting Speed: 11,000 rpm

• Material: Bearing Steel

• Sealing: Open (No Seals)

• Radial Internal Clearance: CN

• Cage Type: Sheet Metal

• Lubrication: None (Can be lubricated as needed)

• Weight: 0.352 kg

• Performance Class: SKF Explorer
