Description

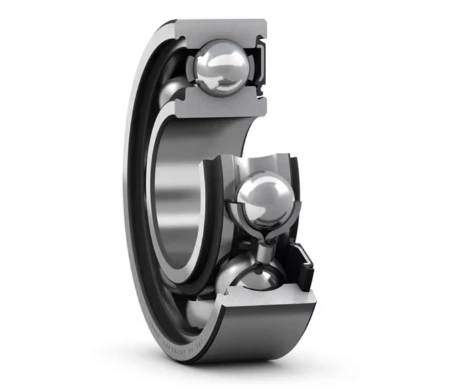

The 6205-RSH Deep Groove Ball Bearing is a versatile and robust SKF Explorer-class bearing designed for high performance and durability. Featuring a contact seal on one side, it effectively retains lubrication while keeping out dust, dirt, and moisture — significantly extending service life. Its simple, single-row design accommodates both radial and axial loads in either direction, making it suitable for a wide range of industrial and mechanical applications. With low friction, reduced vibration, and high-speed capability, the 6205-RSH delivers reliable performance with minimal maintenance.
Specifications
| Attribute | Value |
|---|---|
| Bore Diameter | 25 mm |
| Outside Diameter | 52 mm |
| Width | 15 mm |
| Basic Dynamic Load Rating (C) | 14.8 kN |
| Basic Static Load Rating (C₀) | 7.8 kN |
| Limiting Speed | 8,500 r/min |
| Performance Class | SKF Explorer |
| Number of Rows | 1 |
| Bore Type | Cylindrical |
| Cage Material | Sheet Metal |
| Radial Internal Clearance | CN |
| Sealing | Seal on one side |
| Sealing Type | Contact |
| Material | Bearing Steel |
| Lubricant | None |
| Relubrication Feature | Without |
| Net Weight | 0.125 kg |
| Indicative Carbon Footprint | 0.448 kg CO₂e |
| eClass Code | 23-05-08-01 |
| UNSPSC Code | 31171504 |
