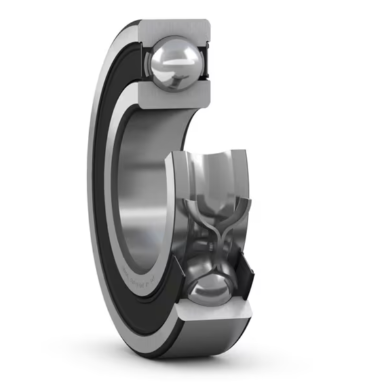

Deep Groove Ball Bearing – 6200-2Z/C3

The 6200-2Z/C3 Deep Groove Ball Bearing is an SKF Explorer-class bearing engineered for high-speed, low-noise, and low-maintenance applications. Equipped with metal shields (2Z) on both sides, it provides non-contact protection, helping to retain grease and prevent contamination without compromising rotational speed.

This versatile and robust bearing is designed to accommodate radial and axial loads in both directions, making it ideal for electric motors, pumps, conveyors, and industrial machinery. Its C3 internal clearance allows for better performance under thermal expansion and high-speed conditions.

Specification:

• Bore Diameter: 10 mm

• Outer Diameter: 30 mm

• Width: 9 mm

• Load Ratings: 5.4 kN (dynamic), 2.36 kN (static)

• Speed Ratings: 56,000 r/min (reference), 28,000 r/min (limiting)

• Number of Rows: 1

• Cage Type: Sheet metal

• Bore Type: Cylindrical

• Radial Internal Clearance: C3

• Sealing: Metal shields on both sides (2Z)

• Sealing Type: Non-contact

• Lubrication: Grease pre-lubricated

• Material: Bearing steel

• Coating: Without

• Relubrication Feature: Without

• Net Weight: 0.0327 kg
