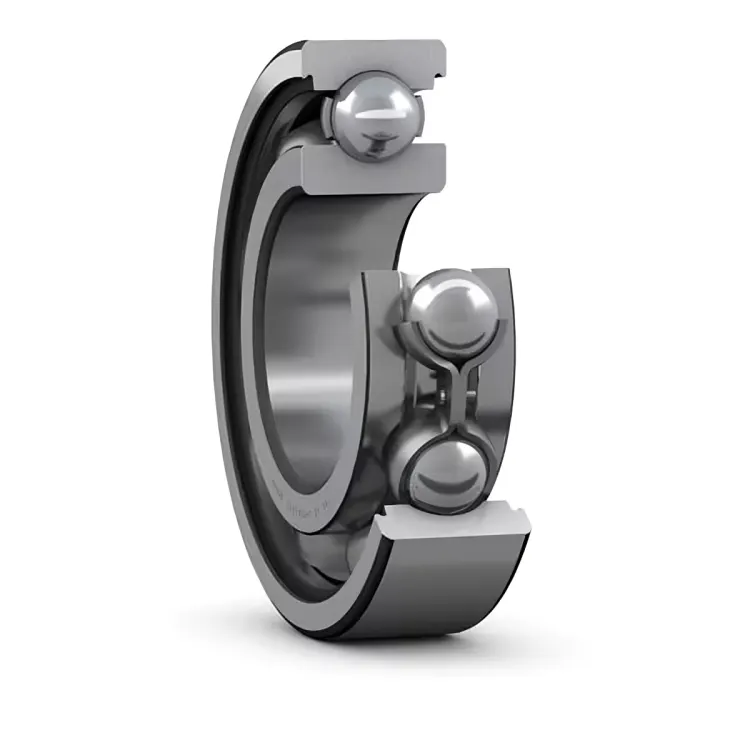

Deep Groove Ball Bearing – 61908/C3
The SKF 61908/C3 is a thin-section single row deep groove ball bearing designed for high-speed applications with reduced friction and noise. With C3 internal clearance, it accommodates both radial and axial loads while ensuring reliable performance and long service life.
Original price was: $39.37.$37.31Current price is: $37.31.
(Save $2.06)
In stock
Description
The SKF 61908/C3 deep groove ball bearing is a slim yet robust solution for applications requiring compactness, precision, and efficiency. Its thin-section design with a 40 mm bore, 62 mm outer diameter, and 12 mm width makes it ideal for space-constrained assemblies without compromising load capacity.
Built from high-quality bearing steel and equipped with a sheet metal cage, this bearing offers low friction and supports high rotational speeds up to 14,000 r/min. The C3 clearance ensures reliable operation under thermal expansion and higher running conditions. Easy to mount and requiring minimal maintenance, the 61908/C3 is well-suited for electric motors, pumps, gearboxes, and other high-speed industrial or household machinery.
Specifications
| Attribute | Value |
|---|---|
| Part Number | 61908/C3 |
| Bearing Type | Deep groove ball bearing |
| Number of Rows | 1 |
| Bore Diameter | 40 mm |
| Outside Diameter | 62 mm |
| Width | 12 mm |
| Basic Dynamic Load Rating | 13.8 kN |
| Basic Static Load Rating | 9.3 kN |
| Reference Speed | 24,000 r/min |
| Limiting Speed | 14,000 r/min |
| Radial Internal Clearance | C3 |
| Bore Type | Cylindrical |
| Cage Material | Sheet metal |
| Sealing | Without |
| Lubricant | None |
| Relubrication Feature | Without |
| Filling Slots | Without |
| Matched Arrangement | No |
| Locating Feature, Outer Ring | Without |
| Material | Bearing steel |
| Coating | Without |
| Product Net Weight | 0.111 kg |
| Indicative Carbon Footprint (Manufacture) | 0.399 kg CO2e |
| eClass Code | 23-05-08-01 |
| UNSPSC Code | 31171504 |
Additional information
| Weight | 0.111 kg |
|---|---|
| Dimensions | 62 × 12 mm |
