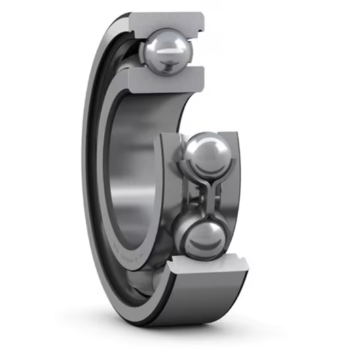

Deep Groove Ball Bearing – 61900

The 61900 Deep Groove Ball Bearing is designed for versatile applications, providing a low friction solution with high-speed performance. Its robust design ensures reliable operation even in demanding conditions. This single-row ball bearing can accommodate radial and axial loads in both directions, making it suitable for a wide range of machinery and equipment.

With a basic dynamic load rating of 2.7 kN and basic static load rating of 1.27 kN, this bearing operates effectively at reference speeds of 70,000 r/min and limiting speeds of 45,000 r/min. Its Cylindrical bore type and CN radial internal clearance make it easy to install and maintain, offering a long service life with minimal need for maintenance. Lubricant-free and non-sealed, this bearing allows for flexibility in lubrication as required for the specific application.

Specification:

• Bore Diameter: 10 mm

• Outer Diameter: 22 mm

• Width: 6 mm

• Load Ratings: 2.7 kN (dynamic), 1.27 kN (static)

• Speed Rating: 70,000 r/min (reference), 45,000 r/min (limiting)

• Number of Rows: 1

• Cage Type: Sheet metal

• Radial Internal Clearance: CN

• Material: Bearing steel

• Lubrication: None

• Sealing: Without

• Tolerance Class: Normal

• Net Weight: 0.009 kg
