Description

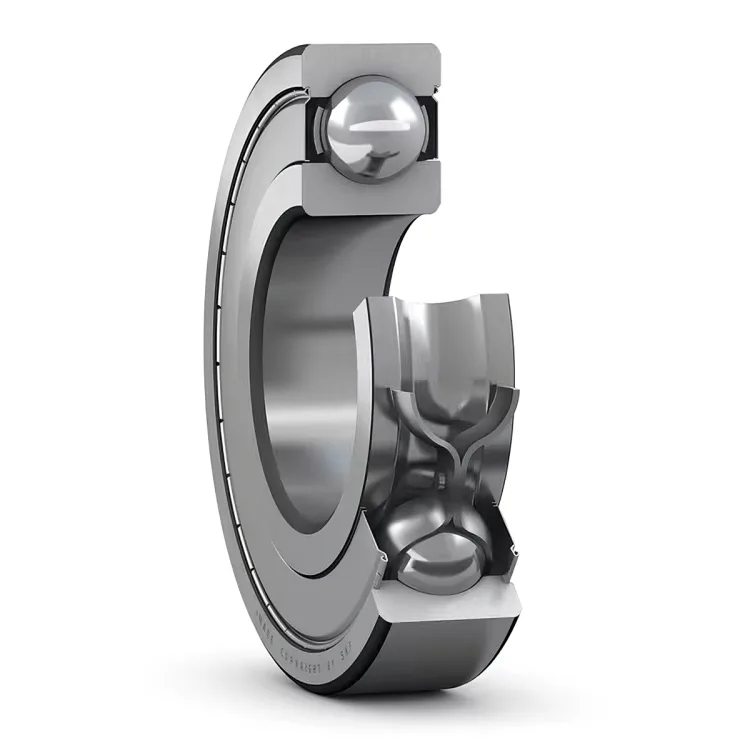

The SKF 6010-2Z/C3 deep groove ball bearing delivers a dependable balance of durability, performance, and efficiency. Its shielded design helps retain grease and protect against contaminants, extending service life and reducing maintenance needs.
Manufactured from high-grade bearing steel with a sheet metal cage, it is optimized for low noise and vibration, making it ideal for electric motors, pumps, gearboxes, and other demanding industrial applications.
The C3 clearance provides extra room for thermal expansion, supporting reliable operation at higher speeds. As part of the SKF Explorer performance class, it offers improved load-carrying capacity, long service life, and smooth, consistent operation even under demanding conditions.
Specifications
| Attribute | Value |
|---|---|
| Part Number | 6010-2Z/C3 |
| Bearing Type | Deep groove ball bearing |
| Number of Rows | 1 |
| Bore Diameter | 50 mm |
| Outside Diameter | 80 mm |
| Width | 16 mm |
| Basic Dynamic Load Rating | 22.9 kN |
| Basic Static Load Rating | 15.6 kN |
| Reference Speed | 18,000 r/min |
| Limiting Speed | 9,000 r/min |
| Radial Internal Clearance | C3 |
| Bore Type | Cylindrical |
| Cage Material | Sheet metal |
| Sealing | Shield on both sides |
| Sealing Type | Non-contact |
| Lubricant | Grease |
| Relubrication Feature | Without |
| Filling Slots | Without |
| Matched Arrangement | No |
| Locating Feature, Outer Ring | Without |
| Material | Bearing steel |
| Coating | Without |
| SKF Performance Class | SKF Explorer |
| Product Net Weight | 0.268 kg |
| Indicative Carbon Footprint (Manufacture) | 0.965 kg CO2e |
| eClass Code | 23-05-08-01 |
| UNSPSC Code | 31171504 |
