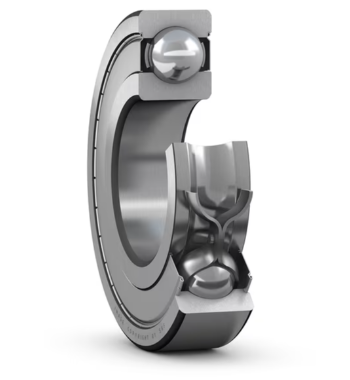

Deep Groove Ball Bearing – 6001-Z

The 6001-Z Deep Groove Ball Bearing is a high-performance, single-row bearing designed for radial and axial load support in both directions. Its shield on one side provides effective sealing, preventing contaminants from entering and keeping lubricant intact, ultimately prolonging the bearing’s service life. This SKF Explorer bearing is ideal for high-speed applications with a limiting speed of 38,000 r/min.

The bearing steel construction ensures durability, while the sheet metal cage allows smooth operation with minimal maintenance. A reliable choice for reducing vibration and noise, it is an excellent fit for a wide range of machinery.

Specification:

• Bore Diameter: 12 mm

• Outer Diameter: 28 mm

• Width: 8 mm

• Load Ratings: 5.4 kN (dynamic), 2.36 kN (static)

• Speed Rating: 60,000 r/min (reference), 38,000 r/min (limiting)

• Number of Rows: 1

• Cage Type: Sheet metal

• Material: Bearing steel

• Lubrication: None

• Sealing: Shield on one side (non-contact)

• Radial Internal Clearance: CN

• Tolerance Class: Normal

• Net Weight: 0.0203 kg
