Description

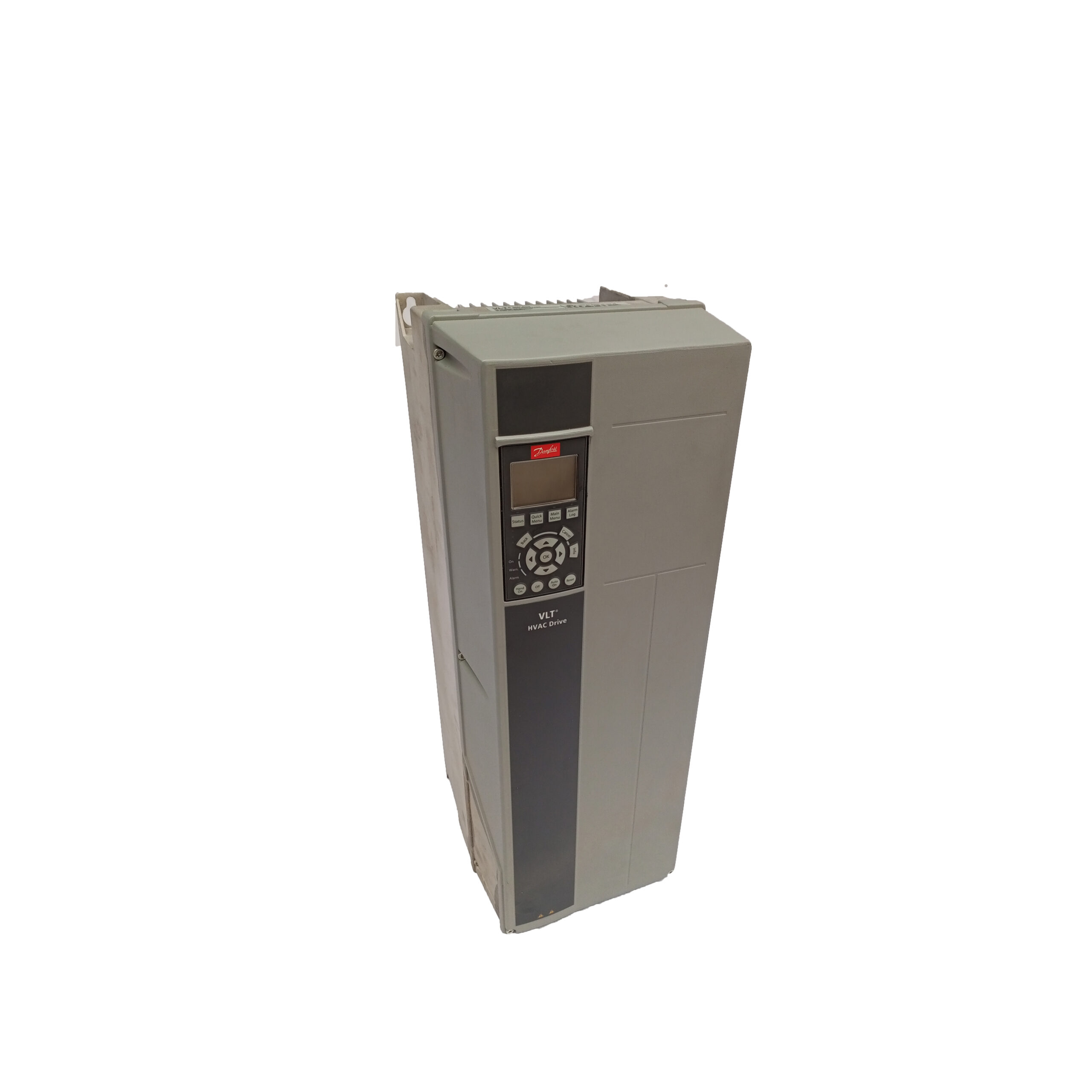

The Danfoss VLT® HVAC Drive FC-102 is a high-performance frequency converter engineered for heating, ventilation, and air conditioning (HVAC) applications. With a power rating of 30 kW (40 HP) and three-phase 380-480V AC operation, this drive ensures optimal energy efficiency and system reliability. Its robust IP55 (Type 12) enclosure provides superior protection against dust and moisture, making it ideal for demanding industrial environments.
This model features an integrated Graphical Local Control Panel (LCP) for intuitive operation, an RFI Class A1/B (C1) filter for electromagnetic compatibility, and no brake chopper for simplified system design. With its modular design and advanced motor control capabilities, the VLT® HVAC Drive FC-102 minimizes energy consumption and reduces operational costs, delivering a low total cost of ownership.
Specifications:
- Model Number: FC-102P30KT4E55H1XGXXXXSXXXXAXBXCXXXXDX
- Power Rating: 30 kW / 40 HP
- Input Voltage: 3-phase, 380 – 480V AC
- Enclosure Rating: IP55 / Type 12 (Dust and water-resistant)
- Filter: RFI Class A1/B (C1)
- Control Panel: Graphical Local Control Panel (LCP)
- Brake Chopper: No brake chopper
- PCB Coating: Not coated
- Mounting: Standard cable entries
- Software: Latest standard software release
- Frame Size: B2
- Dimensions (HxWxD): 664mm x 243mm x 261mm
- Weight: Net: 29.09 kg | Gross: 32.65 kg
- Efficiency: Optimized for HVAC applications
- Compliance: ECCN EU: Y901 | ECCN US: 3A999.a
- Applications: HVAC systems in commercial, industrial, and infrastructure environments
