Description

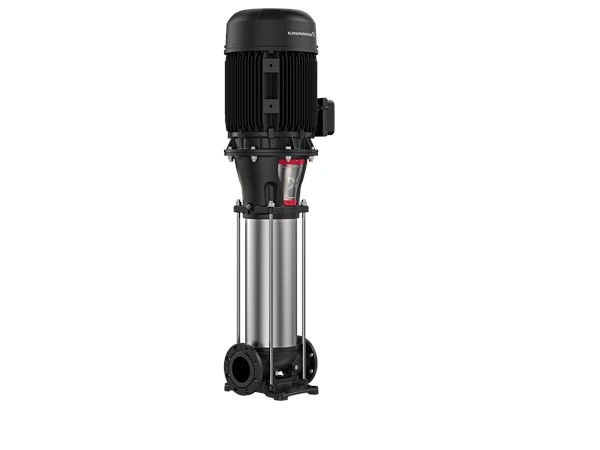

The Grundfos CR 95-2-2 A-F-A-V-HQQV is a vertical, multistage centrifugal pump designed for high-capacity fluid handling in industrial and commercial systems. With suction and discharge ports positioned on the same level, it allows for easy installation and seamless integration into piping layouts.
Built for durability and long service life, the pump features a cast iron head and base for structural strength, while all wetted parts are made from corrosion-resistant stainless steel (EN 1.4301). This ensures reliability in demanding applications where both strength and corrosion resistance are essential.
Delivering a rated flow of 95 m³/h and a rated head of 32.6 m (with a maximum head of 49.3 m), this 2-stage pump provides high performance with excellent efficiency (MEI ≥ 0.70). Its robust design makes it suitable for water supply, pressure boosting, industrial processes, HVAC, and large-scale water treatment systems.
Specifications
| Category | Details |
|---|---|
| Product Name | CR 95-2-2 A-F-A-V-HQQV |
| Product Number | 99141748 |
| EAN Number | 5712607527396 |
| Pump Type | Vertical Multistage Centrifugal Pump |
| Pump Speed (Data Basis) | 2950 rpm |
| Rated Flow | 95 m³/h |
| Rated Head | 32.6 m |
| Maximum Head | 49.3 m |
| Stages | 2 |
| Impellers | 2 |
| Pump Head/Base Material | Cast iron |
| Wetted Parts Material | Stainless steel (EN 1.4301) |
| Terminal Box Position | 6 |
| Minimum Efficiency Index (MEI) | ≥ 0.70 |
| Net Weight | 187 kg |
| Gross Weight | 230 kg |
| Shipping Volume | 0.611 m³ |
| Thrust Handling Device | No |
