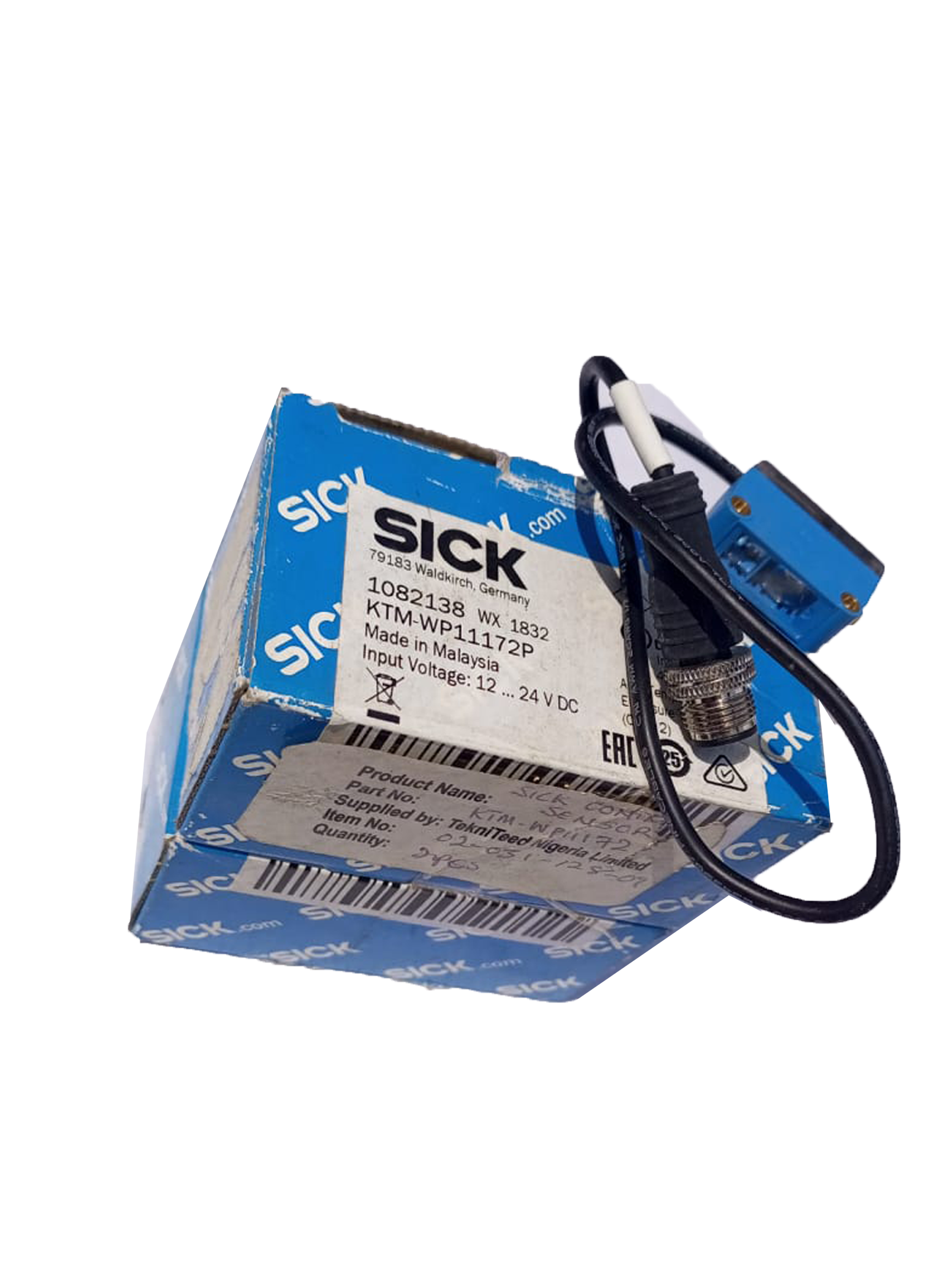

Compact RGB LED Photoelectric Sensor –

This miniaturized photoelectric sensor offers precision and adaptability in a compact housing just 12 mm wide. Ideal for installations where space is limited, it utilizes an RGB LED light source with wavelengths of 470 nm (blue), 525 nm (green), and 625 nm (red), enabling versatile material or color detection.

With a sensing distance of up to 12.5 mm and ±3 mm tolerance, it provides reliable object recognition even in demanding environments. The sensor emits its light from the long side of the housing and delivers a focused light spot (1.6 mm x 9.5 mm) in a vertical direction for precise alignment.

Equipped with a user-friendly teach-in button, it supports both static and dynamic two-point teach-in modes, as well as proximity sensing, making calibration fast and simple. Perfect for OEMs, automation systems, or custom equipment needing high-performance sensing in a small package.

Specifications:

• Dimensions (W x H x D): 12 mm x 31.5 mm x 21 mm

• Sensing Distance: ≤ 12.5 mm

• Sensing Distance Tolerance: ± 3 mm

• Housing Design: Compact, small footprint

• Light Source: RGB LED

• Wavelengths: 470 nm (Blue), 525 nm (Green), 625 nm (Red)

• Light Emission: From the long side of the housing

• Light Spot Size: 1.6 mm x 9.5 mm

• Light Spot Direction: Vertical

• Receiving Filters: None

• Adjustment Method: Teach-in button
