Description

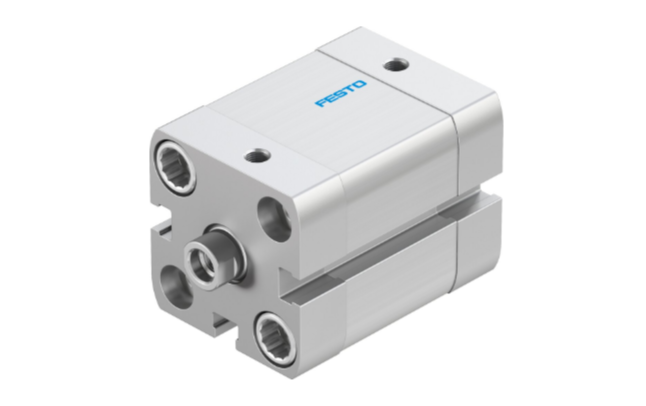

The ADN-25-15-I-P-A Compact Cylinder is a high-performance, ISO 21287-compliant pneumatic cylinder designed for applications requiring compact design, precise motion, and reliability. With a 25 mm piston diameter and 15 mm stroke, it delivers smooth and efficient double-acting operation using compressed air (ISO 8573-1:2010 [7:4:4]) and can optionally operate with oil lubrication.
Equipped with elastic cushioning rings/pads at both ends, the cylinder minimizes impact energy (0.3 J) for controlled motion and reduced wear. The piston rod features an internal thread for easy integration into mechanical systems, and the unit supports proximity sensors for accurate position detection. Its moderate corrosion resistance (CRC 2) and cleanroom suitability (ISO 14644-1 Class 5) make it ideal for diverse industrial environments.
Operating at 0.06–1 MPa (0.6–10 bar), the cylinder generates a theoretical force of 295 N advancing and 247 N retracting at 6 bar. Lightweight and compact, it weighs just 211 g, making it suitable for automation, robotics, and other precision applications.
Specifications
| Parameter | Details |
|---|---|
| Product Name | Compact Cylinder |
| Part Number | ADN-25-15-I-P-A |
| Manufacturer Code | 536261 |
| Piston Diameter | 25 mm |
| Stroke | 15 mm |
| Piston Rod Thread | M6 |
| Piston Rod End | Internal Thread |
| Mode of Operation | Double-Acting |
| Cushioning | Elastic cushioning rings/pads at both ends |
| Mounting Position | Any |
| Standard Compliance | ISO 21287 |
| Position Sensing | For proximity sensor |
| Operating Pressure | 0.06–1 MPa (0.6–10 bar) |
| Operating Medium | Compressed air per ISO 8573-1:2010 [7:4:4] |
| Lubrication | Operation with oil possible (required for further use) |
| Corrosion Resistance Class (CRC) | 2 – Moderate |
| LABS (PWIS) Conformity | VDMA24364-B1/B2-L |
| Cleanroom Suitability | ISO 14644-1 Class 5 |
| Ambient Temperature | -20 °C … 80 °C |
| Impact Energy at End Positions | 0.3 J |
| Theoretical Force at 6 bar (Advancing) | 295 N |
| Theoretical Force at 6 bar (Retracting) | 247 N |
| Moving Mass | 41 g |
| Product Weight | 211 g |
| Symbol | 00991217 |
