Description

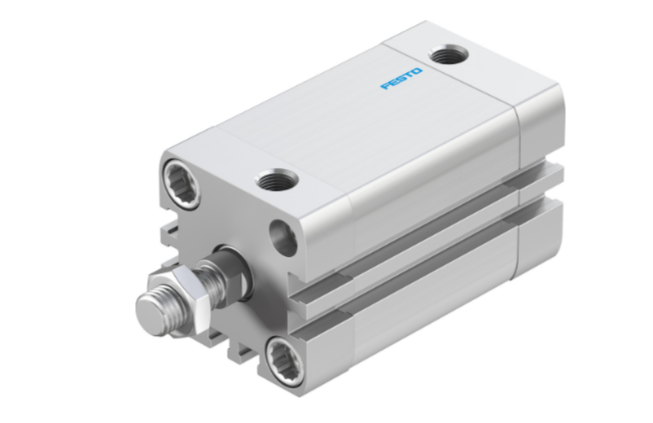

The ADN-32-40-A-P-A compact air cylinder offers powerful performance in a space-saving design, making it perfect for modern industrial automation. Built to ISO 21287 standards, it features a double-acting mechanism with a 32 mm piston diameter and 40 mm stroke, delivering up to 483 N of force at 6 bar.
Its rugged design includes elastic cushioning rings for smooth end-position impact, RoHS compliance, and LABS (PWIS) conformity for sensitive environments. With flexible mounting options and compatibility with proximity sensors, this cylinder is an excellent choice for applications that demand reliability, durability, and clean operation.
Specifications
| Parameter | Details |
|---|---|
| Model | ADN-32-40-A-P-A |
| Type | Compact Air Cylinder |
| Mode of Operation | Double-acting |
| Piston Diameter | 32 mm |
| Stroke | 40 mm |
| Theoretical Force at 6 bar (Advance) | 483 N |
| Theoretical Force at 6 bar (Retract) | 415 N |
| Piston Rod Thread | M10x1.25 |
| Piston Rod End | External thread |
| Cushioning | Elastic cushioning rings/pads at both ends |
| Operating Pressure | 0.06 MPa to 1 MPa (0.6 bar to 10 bar) |
| Operating Medium | Compressed air ISO 8573-1:2010 [7:4:4] |
| Lubrication | Required if started with oil lubrication |
| Mounting Position | Any |
| Type of Mounting | Through-hole, internal thread, or with accessories |
| Pneumatic Connection | G1/8 |
| Position Sensing | For proximity sensors |
| Ambient Temperature | -20 °C to +80 °C |
| Cleanroom Class | ISO Class 6 |
| Corrosion Resistance Class (CRC) | 2 – Moderate |
| Impact Energy at End Positions | 0.4 J |
| Moving Mass | 113 g |
| Product Weight | 383 g |
| Conforms to Standard | ISO 21287 |
| Symbol | 00991217 |
| RoHS Compliance | Yes |
| LABS (PWIS) Conformity | VDMA24364-B1/B2-L |
| Flange Screws Material | Steel |
| Cover Material | Wrought aluminum alloy, anodized |
| Cylinder Barrel Material | Wrought aluminum alloy, smooth-anodized |
| Piston Rod Material | High-alloy steel |
| Seals Material | TPE-U (PUR) |
