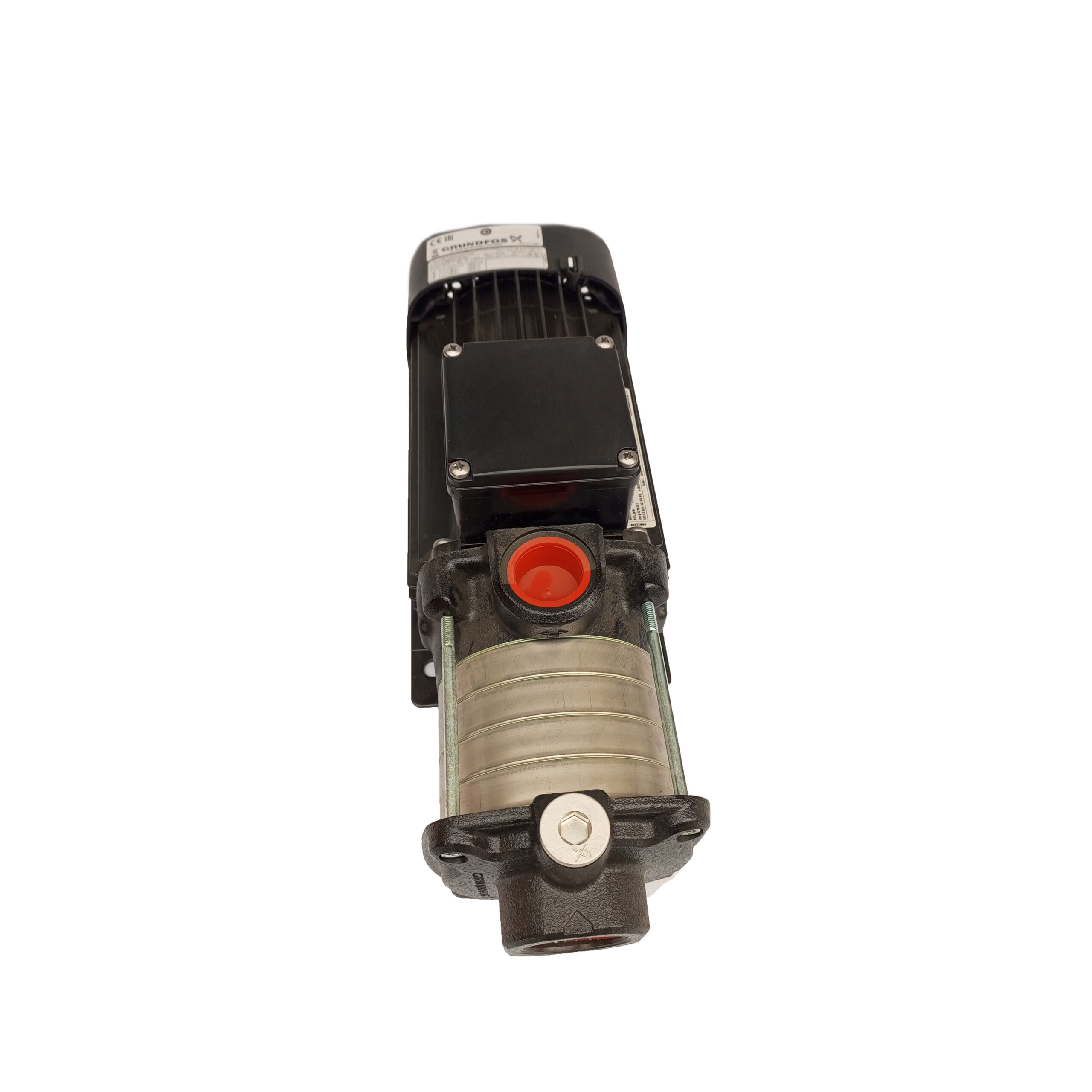

CM 5-5 A-R-A-E-AQQE F-A-A-N – 96807033

The CM 5-5 A-R-A-E-AQQE F-A-A-N is a robust, space-saving horizontal end-suction centrifugal pump designed for industrial, commercial, and residential applications. With a modular construction, it ensures easy customization and adaptability to different requirements.

The stainless steel impellers and chambers provide excellent corrosion resistance, while the cast iron inlet and discharge parts ensure durability and strength. The unbalanced O-ring mechanical shaft seal (AQQE) enhances leak prevention, ensuring long-lasting operation.

This pump is designed to handle water temperatures from -20°C to 90°C, making it suitable for various water circulation, pressure boosting, and industrial applications. It operates at 2900 rpm, delivering a rated flow of 4.7 m³/h and a head of 38.61 m, ensuring reliable performance.

Certified for drinking water use with WRAS, ACS, and NSF61 approvals, this pump meets industry standards for quality and safety. Whether for commercial, industrial, or residential water applications, the CM 5-5 is the perfect balance of efficiency, reliability, and longevity.

Specifications:

• Type: Horizontal Multistage Centrifugal Pump
• Flow Rate: 4.7 m³/h
• Head: 38.61 m
• Pump Speed: 2900 rpm
• Liquid Temperature Range: -20°C to 90°C
• Pump Housing: Cast Iron (EN-GJL-200, ASTM A48-25A)
• Impeller Material: Stainless Steel (EN 1.4301, AISI 304)
• Shaft Seal Type: AQQE (Unbalanced O-ring Seal)
• Connection Type: Internal Whitworth Pipe Threads (Rp – ISO 7/1)
• Motor Type: Three-phase, foot-mounted, fan-cooled asynchronous motor
• Certifications: WRAS, ACS, NSF61, EAC
• Curve Tolerance: ISO 9906:2012 3B
