Description

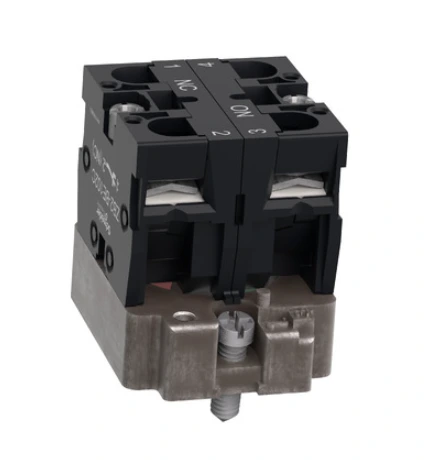

The ZB2BZ105C is a versatile mounting base unit from Schneider Electric’s Easy Harmony XB2 range, designed to accommodate a wide variety of push-button and selector switch assemblies. This model features two contact blocks—1 Normally Open (NO) and 1 Normally Closed (NC)—making it suitable for dual-function control operations.
Its robust design, combined with screw-clamp terminals, ensures easy installation, secure wiring, and long-lasting performance. With a mounting diameter of 22.5 mm, it is compatible with standard industrial control panel configurations and components.
Whether for machine control or operator interface units, the ZB2BZ105C provides a reliable foundation for your custom-built push-button stations.
Specifications
| Feature | Details |
|---|---|
| Brand | Schneider Electric |
| Product Range | Easy Harmony XB2 |
| Model Reference | ZB2BZ105C |
| Product Type | Control Button Mounting Base |
| Contact Configuration | 1 NO + 1 NC |
| Mounting Diameter | 22.5 mm |
| Application | Push-buttons, Selector Switches |
| Connection Type | Screw Clamp Terminals |
| Height | 40 mm |
| Width | 30 mm |
| Depth | 42.5 mm |
| Net Weight | 0.055 kg |
| Mounting Compatibility | Ø 22 mm Control Button Head |
| Environmental Compliance | RoHS / REACh Compliant |
