Description
The SKF TKBA 20 is a versatile laser alignment tool designed for pulley and sprocket systems, ensuring fast, accurate alignment that minimizes belt wear, energy consumption, and downtime. By projecting a clear green laser line, it enables reliable alignment results even in bright industrial environments and outdoor conditions.
This alignment tool features powerful magnets for side mounting, making it quick to install on almost any pulley or sprocket face. Operators can instantly visualize offset and angular misalignment using the transmitter and reflector units, allowing straightforward correction. The robust aluminum housing provides stability during use, ensuring long-term reliability in industrial maintenance.

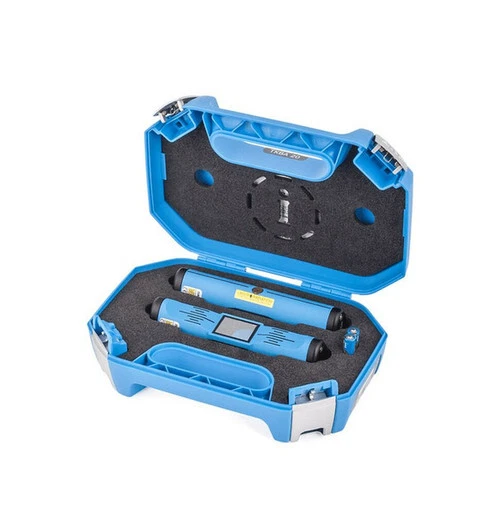

Delivered as a complete kit, the TKBA 20 includes transmitter and receiver units, batteries, printed instructions, and a calibration certificate valid for two years. Lightweight yet durable, the tool is designed for easy handling and comes in a compact storage case, making it an essential solution for maintenance teams across industries.
Specifications
| Attribute | Value |
|---|---|
| Part Number | TKBA 20 |
| Type | Belt alignment tool (pulley/sprocket face) |
| Net Weight | 1.30 kg |
| Measurement Distance | 50 – 6,000 mm |
| Angular Accuracy (at 2 m) | Better than 0.02° |
| Offset Accuracy | Better than 0.5 mm |
| Laser Type | Built-in Class 2 green laser diode |
| Laser Wavelength | 532 nm |
| Max Laser Power | <1 mW |
| Laser Line Length (at 2 m) | 2 m |
| Transmitter Dimensions (L × H × W) | 169 × 51 × 37 mm |
| Transmitter Weight | 0.365 kg |
| Receiver Dimensions (L × H × W) | 169 × 51 × 37 mm |
| Receiver Weight | 0.340 kg |
| Reflector Dimensions (L × H × W) | 22 × 32 mm |
| Mounting | Magnetic, side mounted |
| Housing Material | Aluminum, powder coat finish |
| Battery Type | 2 × AAA Alkaline (IEC LR03) |
| Battery Life | 8 h continuous operation |
| Case Dimensions (L × H × W) | 260 × 85 × 180 mm |
| Degree of Protection | IP40 |
| Operating Temperature Range | 0 – 40 °C |
| Storage Temperature Range | –20 – 60 °C |
| Relative Humidity | 10 – 90%, non-condensing |
| Certifications | Calibration certificate (valid for 2 years) |
| Supplied Content | Transmitter unit, receiver unit, 2 AAA batteries, printed instructions, calibration certificate |
| eClass Code | 23-05-19-01 |
| UNSPSC Code | 41112202 |
| Unit of Measure | Set |
