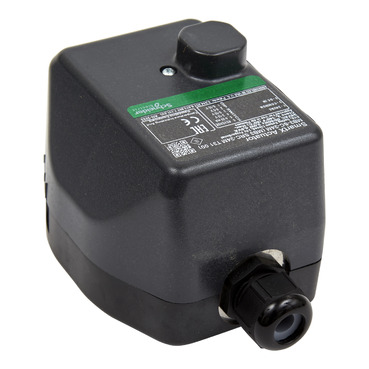

Ball Valve Actuator – MB3-SC-24M
The MB3-SC-24M is a proportional ball valve actuator with spring return closed function, designed for VB2, VB21, VB3, and VB31 valves. Featuring pop-top quick mounting, 24 V AC supply, and modulating 0–10 V or 4–20 mA control input.
Original price was: $147.40.$136.22Current price is: $136.22.
(Save $11.18)
Out of stock
Description
The MB3-SC-24M Ball Valve Actuator is a compact and efficient actuator solution designed for use with VB200R, VB210R, VB300R, and VB310R valve ranges. Its innovative Pop-Top connection system enables simple, tool-free mounting and secure installation, ensuring reduced setup time and improved reliability.
Engineered for proportional (modulating) control, the actuator supports both 0–10 V DC and 4–20 mA DC analogue input ranges, making it highly adaptable for a variety of HVAC and fluid control applications. In case of power failure, the spring return function ensures that the actuator closes the valve, providing an additional safety measure.
With a robust design, IP31 protection rating, and the ability to operate within a wide ambient temperature range (0–60 °C), the MB3-SC-24M is suitable for demanding environments. Convenient features such as terminal block connection, removable cable gland, and a visible position indicator enhance usability and serviceability.
Specification
| Attribute | Details |
|---|---|
| Part number | MB3-SC-24M |
| Product type | Actuator |
| Actuator type | Electric rotary |
| Actuator series | MB3 |
| Actuator model | MB3 SRC-24M T31 00 |
| Control type | Electrically operated |
| Control signal | Proportional / Modulating |
| Analogue input | 0–10 V DC, 4–20 mA DC |
| Rated supply voltage | 24 V AC |
| Power consumption | 2.5 W (2.7 VA) |
| Transformer rated power | 10 VA |
| Power loss return | Spring return closed |
| Tightening torque | 2.9 N·m (26 lb.in) |
| Position indicator | Green push stem with color markers |
| Features | Pop-top quick connection, terminal block, removable cable gland |
| Conduit connection | M20 |
| IP protection | IP31 |
| Operating temperature | 0…60 °C |
| Storage temperature | -40…76 °C |
| Relative humidity | 5–95 % non-condensing |
| Net weight | 1.1 kg |
| Dimensions (L x W x H) | 170 mm x 105 mm x 90 mm |
| Destination | VB2, VB21, VB3, VB31 ball valves |
Additional information
| Weight | 1.1 kg |
|---|---|
| Dimensions | 170 × 105 × 90 mm |
