Description

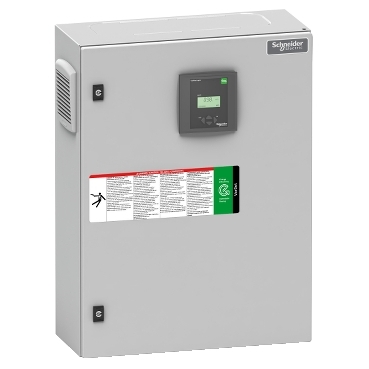

The Automatic EasyLogic PFC Capacitor Bank (VLVAW1L075A40A) is part of the PowerLogic / VarSet range, engineered to improve power factor, reduce reactive energy consumption, and eliminate utility penalties. It supports energy savings, reduces operational costs, and helps lower CO₂ emissions in electrical installations.
Operating in automatic mode, the system features a VarplusLogic power factor controller that dynamically adjusts compensation according to load variations, ensuring optimal performance in commercial and industrial environments with variable loads.
The enclosure is wall-mounted, finished in RAL7035 grey, and designed with top cable entry. It provides a standard protection rating of IP31, with optional kits available to upgrade to IP54.
This model is ideal for medium-sized commercial buildings and light industrial facilities requiring dependable automatic power factor correction.
Specifications
| Feature | Specification |
|---|---|
| Product Code | VLVAW1L075A40A |
| Product Type | Automatic Capacitor Bank |
| Range | PowerLogic / VarSet |
| Operating Mode | Automatic |
| Reactive Power Rating | 75 kVAr |
| Network Rated Voltage | 400–415 V AC |
| Frequency | 50 Hz |
| Controller | VarplusLogic (Modbus RS485) |
| Harmonic Compatibility | Voltage ≤3%, Current ≤5% |
| Enclosure Type | Wall-mounted |
| Protection Degree | IP31 (Upgradeable to IP54) |
| Height | 800 mm |
| Width | 600 mm |
| Depth | 250 mm |
| Weight | 73 kg |
