Description

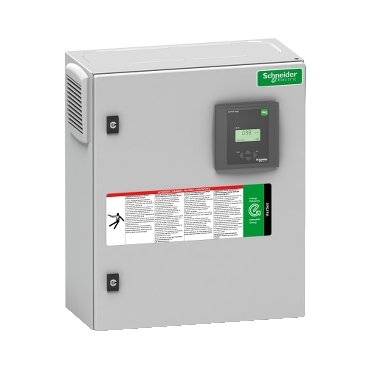

The Automatic EasyLogic PFC Capacitor Bank (VLVAW0L007A40A) is part of the PowerLogic / VarSet range, designed to improve power factor, reduce reactive energy consumption, and eliminate utility penalties. It supports energy savings, lowers operational costs, and helps reduce CO₂ emissions.
Operating in automatic mode, the unit is equipped with a VarplusLogic power factor controller that dynamically adjusts compensation according to load variations, ensuring efficient performance in small commercial or light industrial installations.
The enclosure is wall-mounted, finished in RAL7035 grey, and designed with top cable entry. It provides a standard protection rating of IP31, with optional kits available to upgrade to IP54.
This model is ideal for small electrical installations, offices, and commercial buildings requiring dependable automatic power factor correction.
Specifications
| Feature | Specification |
|---|---|
| Product Code | VLVAW0L007A40A |
| Product Type | Automatic Capacitor Bank |
| Range | PowerLogic / VarSet |
| Operating Mode | Automatic |
| Reactive Power Rating | 7.5 kVAr |
| Network Rated Voltage | 400–415 V AC |
| Frequency | 50 Hz |
| Controller | VarplusLogic (Modbus RS485) |
| Harmonic Compatibility | Voltage ≤3%, Current ≤5% |
| Enclosure Type | Wall-mounted |
| Protection Degree | IP31 (Upgradeable to IP54) |
| Height | 650 mm |
| Width | 500 mm |
| Depth | 250 mm |
| Weight | 57 kg |
