Description

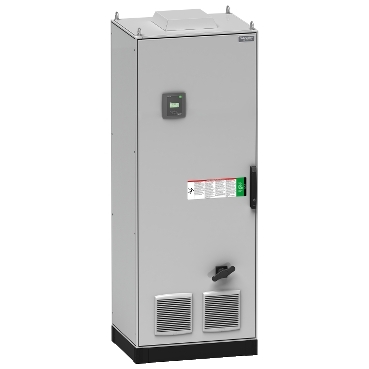

The Automatic EasyLogic PFC Capacitor Bank (VLVAF5L550A40A) is part of the PowerLogic / VarSet range, designed to improve power factor, reduce reactive energy consumption, and eliminate utility penalties. It supports energy efficiency, lowers operational costs, and helps reduce CO₂ emissions.
Operating in automatic mode, the system uses a VarplusLogic power factor controller to continuously adjust reactive power compensation according to load variations, ensuring optimal performance in high-demand industrial and commercial environments.
The enclosure is floor-standing, finished in RAL7035 grey, and designed with bottom cable entry. It provides a standard protection rating of IP31, with optional kits available to upgrade to IP54.
This model is ideal for large-scale industrial facilities, manufacturing plants, and heavy-load applications requiring robust and reliable automatic power factor correction.
Specifications
| Feature | Specification |
|---|---|
| Product Code | VLVAF5L550A40A |
| Product Type | Automatic Capacitor Bank |
| Range | PowerLogic / VarSet |
| Operating Mode | Automatic |
| Reactive Power Rating | 550 kVAr |
| Network Rated Voltage | 400–415 V AC |
| Frequency | 50 Hz |
| Controller | VarplusLogic (Modbus RS485) |
| Harmonic Compatibility | Voltage ≤3%, Current ≤5% |
| Enclosure Type | Floor-standing |
| Protection Degree | IP31 (Upgradeable to IP54) |
| Height | 2200 mm |
| Width | 800 mm |
| Depth | 600 mm |
| Weight | 320 kg |
