Description

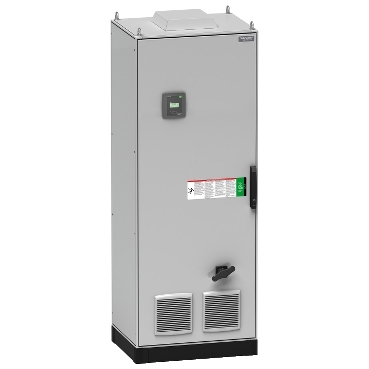

The Automatic EasyLogic PFC Capacitor Bank (VLVAF5L500A40B) is part of the PowerLogic / VarSet range, engineered to improve power factor, minimize reactive energy consumption, and eliminate utility penalties. It enhances energy efficiency, reduces operational costs, and supports lower CO₂ emissions.
Operating in automatic mode, the unit is equipped with a VarplusLogic power factor controller that dynamically adjusts compensation based on real-time load conditions. This ensures optimal performance in installations with heavy and variable electrical loads.
The enclosure is floor-standing, finished in RAL7035 grey, and designed with bottom cable entry. It offers a standard protection rating of IP31, with optional upgrades to IP54 for enhanced environmental protection.
This model is ideal for large-scale industrial facilities, manufacturing plants, and high-load commercial environments requiring robust and automatic power factor correction.
Specifications
| Feature | Specification |
|---|---|
| Product Code | VLVAF5L500A40B |
| Product Type | Automatic Capacitor Bank |
| Range | PowerLogic / VarSet |
| Operating Mode | Automatic |
| Reactive Power Rating | 500 kVAr |
| Network Rated Voltage | 400–415 V AC |
| Frequency | 50 Hz |
| Controller | VarplusLogic (Modbus RS485) |
| Harmonic Compatibility | Voltage ≤3%, Current ≤5% |
| Enclosure Type | Floor-standing |
| Protection Degree | IP31 (Upgradeable to IP54) |
| Height | 2200 mm |
| Width | 800 mm |
| Depth | 600 mm |
| Weight | 279 kg |
