Description

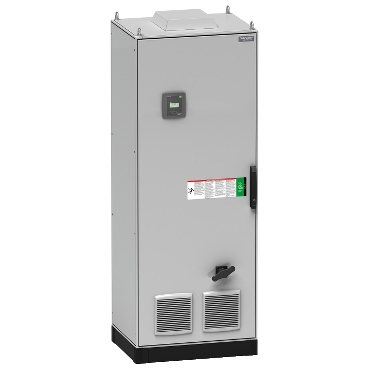

The Automatic EasyLogic PFC Capacitor Bank (VLVAF5L350A40B) is part of the PowerLogic / VarSet range, developed to optimize power factor, reduce reactive power consumption, and eliminate utility penalties. It enhances overall energy efficiency while lowering operational costs and CO₂ emissions.
Operating in automatic mode, the system is equipped with a VarplusLogic power factor controller that continuously adjusts compensation in response to load variations. This ensures reliable performance in environments with variable or unstable loads.
Specifications
| Feature | Specification |
|---|---|
| Product Code | VLVAF5L350A40B |
| Product Type | Automatic Capacitor Bank |
| Range | PowerLogic / VarSet |
| Operating Mode | Automatic |
| Reactive Power Rating | 350 kVAr |
| Network Rated Voltage | 400–415 V AC |
| Frequency | 50 Hz |
| Controller | VarplusLogic (Modbus RS485) |
| Harmonic Compatibility | Voltage ≤3%, Current ≤5% |
| Enclosure Type | Floor-standing |
| Protection Degree | IP31 (Upgradeable to IP54) |
| Height | 2200 mm |
| Width | 800 mm |
| Depth | 600 mm |
| Weight | 266.333 kg |
