Description

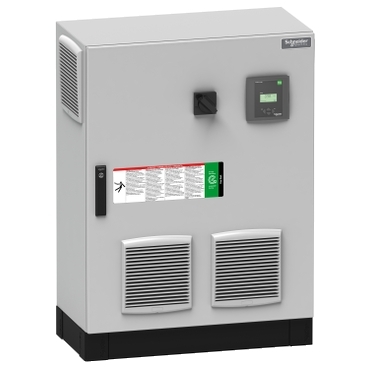

The Automatic EasyLogic PFC Capacitor Bank (VLVAF3L250A40A) belongs to the PowerLogic / VarSet range and is designed to improve power factor, reduce reactive power consumption, and help eliminate utility penalties.
It operates in automatic mode using a VarplusLogic power factor controller, which continuously adjusts compensation based on load demand. This ensures optimal performance in installations with variable or unstable loads.
The enclosure is floor-standing, finished in RAL7035 grey, with bottom cable entry. Standard protection degree is IP31, with optional kits available to upgrade to IP54.
This solution is ideal for commercial buildings, industrial plants, and energy-intensive facilities requiring efficient automatic reactive power compensation.
Specifications
| Feature | Specification |
|---|---|
| Product Code | VLVAF3L250A40A |
| Product Type | Automatic Capacitor Bank |
| Range | PowerLogic / VarSet |
| Operating Mode | Automatic |
| Reactive Power Rating | 250 kVAr |
| Network Rated Voltage | 400–415 V AC |
| Frequency | 50 Hz |
| Controller | VarplusLogic (Modbus RS485) |
| Harmonic Compatibility | Voltage ≤3%, Current ≤5% |
| Enclosure Type | Floor-standing |
| Protection Degree | IP31 (Upgradeable to IP54) |
| Height | 1100 mm |
| Width | 800 mm |
| Depth | 400 mm |
| Weight | 105 kg |
| Enclosure Color | RAL7035 |
| Protection Device | Circuit breaker included |
